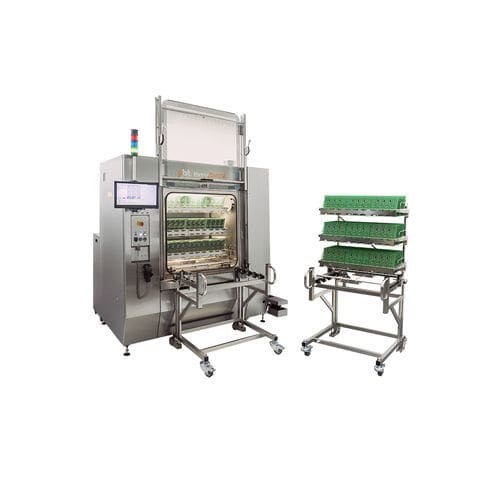

Handling with the parts to clean is simple and safe. PCBAs are reloaded on the puscart while the machine is cleaning another batch. This eliminates downtime and provides comfortable time for reload. Operators do not need to lift and carry frames or baskets between reloading place and the machine.
Operator loads pushcart manualy into the chamber. Optimal cost effective solution for the typical SMT productions.
HyperSWASH loads batch from the pushcart automatically into the chamber. Top solution for fully automated high volume cleaning production includes complete human-machine safety system.
Machine washes parts by linear spray system with the water based cleaning agent in a fully closed loop through complete mechanical filtration.
Machine performs short initial pre-rinse with the ready DI-water, pumps it out, and refills the tank with the external DI-Water. Optimal setup for cost/quality balance in high volume cleaning.
Machine performs first rinse down to required conductivity level using integrated 39L carbon and mixbed filters.
Machine performs second rinse with high purity deionized water down to the required conductivity. It reclaims water continuously through integrated 39L carbon and mixbed filters.
Machine dries parts by linear hot air knife with partical filtration intake.
