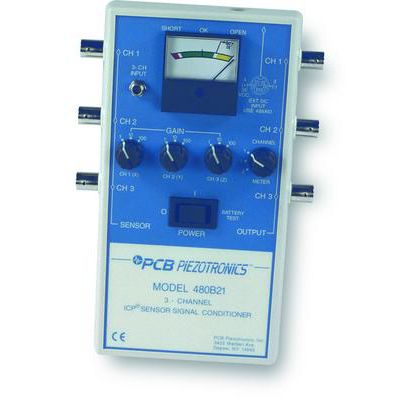

Multi-channel signal conditioner 480B21

3-channel, battery-powered, ICP® sensor signal cond., gain x1, x10, x100, BNC input/output conn. 3-channel, Battery-powered, ICP® Sensor Signal Conditioner with Gain x1, x10 and x100 for each channel. BNC input and output connectors. Uses three 9-volt alkaline batteries (included). Channels: 3 Specification Notes [1] Low frequency response specified into 1M ohm load. [2] Alkaline type recommended for longest service life. [3] With 1M ohm load. [4] Excitation voltage to sensor limited by optional DC power voltage. [5] Un-buffered output, read out device input impedance affects discharge time constant and low frequency response of unit. [6] Use BNC's or Triax connector, not both at once. Cover all unused connectors with black ESD protective caps.
