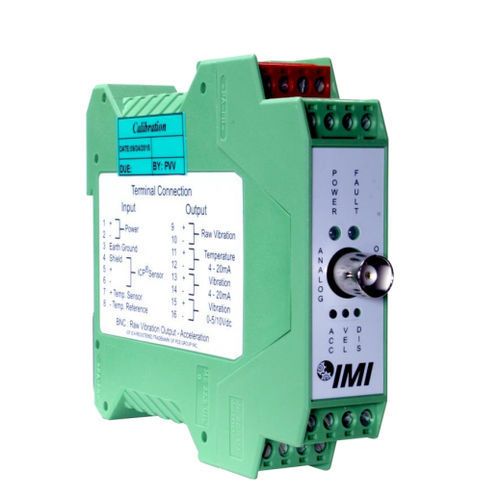

Industrial analog signal transmitter 682C03

DIN rail4-20 mA

Platinum Stock Products: DIN rail mount vibration transmitter (for use w/ICP sensor), 4-20 mA outputs for vibration and temperature, 0-5/0-10 VDC output for vibration, raw vibration output, 3 Hz to 10 kHz frequency range Output Signal: 4 to 20 mA Frequency Range: (-3dB)180 to 600000 cpm (3 to 10k Hz) DC Power: 23 to 25 VDC Specification Notes [1] Achieved with 100 mV/g ICP® accelerometer input. [2] Attenuation is -40 dB/decade. [3] Maximum 1,000 Hz for displacement. [4] Output current voltage will fluctuate at frequencies below 5 Hz. [5] Requires use of accelerometer with "TO" temperature output option. [6] Factory set, 0-5 VDC. [7] Factory set, 1.0 in/sec peak [8] Output measurement range is based upon input from 100 mV/g ICP® accelerometer and will be scaled inversely proportional to any percentage deviation of this input. [9] Internal Dip switch selectable [10] The low frequency tolerance is accurate within ± 0.5 Hz of the specified frequency. [11] The high frequency tolerance is accurate within ± 0.5 kHz of the specified frequency. [9] Internal Dip switch selectable [12] Jumper selectable for 18 VDC regulated, 24 VDC power supply voltage or ICP® sensor excitation disabled [13] 4 mA constant current diode is internal to 9330VT
