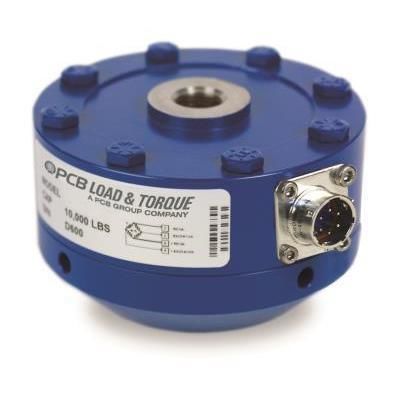

Tension/compression load cell 1204-12A/084A101

pancake typesingle-axisstrain gauge

Product Summary
Low-profile load cell rated 25,000 lbf (111 kN) capacity, 50% overload protection, 4.0 mV/V rated output, 1 1/4-12 UNF mounting thread, PT02E-10-6P electrical connector. Model 1204-12A/084A101. Painted steel housing with strain gage sensing element.

Features / Key Items

• Measurement range: 25 klbf (111 kN)
• Low-profile design for compact installations
• 50% overload protection
• Rated output: 4.0 mV/V (±10 %)
• Mounting thread: 1 1/4-12 UNF
• Electrical connector: PT02E-10-6P

Availability
Units in Stock: More on the way
Lead Times: Lead time for 1-2 units: approx. 3 weeks

Specification Notes
[1] Nominal. [2] FS - Full Scale. [3] RO - Rated Output. [4] Calibrated in tension and compression. [5] Performance specifications guaranteed with factory-installed optional Tension Base 084A101. [6] Singularly applied, i.e. no other extraneous loads. [7] Over compensated operating temperature range. [8] Calibrated at 10 VDC, usable 5 to 20 VDC or VAC RMS. [9] See Outline Drawing 49932 for complete dimensions.

Specifications (selected)
Measurement Range: 25 klbf / 111 kN [2] [4]
Sensitivity (±10 % RO): 4.0 mV/V
Non-Linearity: ≤0.05 % FS
Hysteresis: ≤0.06 % FS
Non-Repeatability: ≤0.01 % RO
Creep (in 20 minutes): 0.025 %
Static Error Band: ≤0.05 % FS
Eccentric Load Sensitivity: 0.25 %/in (0.25 %/25.4 mm)
Resonant Frequency: 12 kHz
Side Load Sensitivity: 0.25 %/in (0.25 %/25.4 mm)
Overload Limit: 37.5 klbf / 167 kN
Load Limit (Side Force, FX or FY): 10 klbf / 44 kN
Load Limit (Bending Moment, MX or MY): 10 klbf-in / 1130 Nm
Load Limit (Axial Torque, MZ): 10 klbf-in / 1130 Nm
Temperature Range (Operating): -65 to +200 °F (-54 to +93 °C)
Temperature Range (Compensated): +15 to +115 °F (-9 to +46 °C)
Temperature Effect on Output (Maximum): ±0.0008 %Reading/°F (±0.0018 %Reading/°C)
Temperature Effect on Zero Balance (Maximum): ±0.0008 %FS/°F (±0.0018 %FS/°C)
Bridge Resistance: 350 Ohm
Excitation Voltage (Recommended): 10 VDC (usable 5 to 20 VDC or VAC RMS)
Insulation Resistance: >5K GOhm
Zero Balance: ±1 %RO / ±1 %FS
Output Polarity: +Tension
Size - Diameter: 6.06 in (153.9 mm)
Size - Height: 3.50 in (88.9 mm)
Weight: 21 lb (9.53 kg)
Mounting Thread: 1 1/4 - 12 UNF-3B
Housing Material: Painted Steel
Sensing Element: Strain Gage
Mounting Torque: 1400 lbf-in (158 Nm)
Deflection at Full Scale Capacity: 0.002 in (0.05 mm)
Electrical Connector: PT02E-10-6P

Accessories (optional)

• 084A101 — Tension Load Base w/ 1 1/4-12
• 084A56 — Load cell thread pre-tensioner 1 1/4-12
• 084A90 — Connector Protector, 1200 & 1400 Series
• 181-012A — Mating connector, 6-socket (F) w/ strain relief for PT06A-10-6S (SR)
• 8311-01-10A — 4-conductor PT06A-10-6S to pigtails cable, 10 ft

Technical characteristics

• Brand: PCB Piezotronics
• Model: 1204-12A/084A101
• Rated capacity: 25 klbf (111 kN)
• Rated output: 4.0 mV/V
• Accuracy: Non-linearity ≤0.05 % FS; Hysteresis ≤0.06 % FS; Repeatability ≤0.01 % RO
• Overload limit: 37.5 klbf (167 kN)
• Operating temperature: -54 to +93 °C
• Electrical connector: PT02E-10-6P
• Housing material: Painted steel
• Dimensions (D x H): 153.9 mm x 88.9 mm
• Weight: 9.53 kg
