Electronic vibration switch 686C01

programmable

Product overview

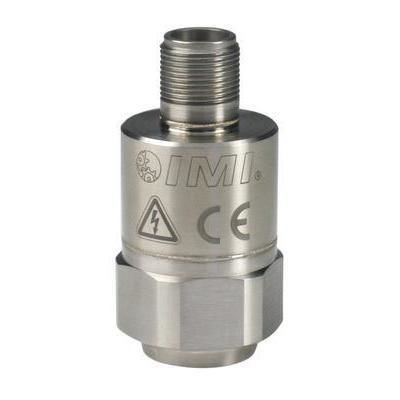

The 686C01 Smart Vibration Switch is a USB-programmable electronic vibration switch with configurable alarm threshold, delays and relay or MOSFET outputs. It serves as an electronic alternative to mechanical vibration switches for industrial machine condition monitoring and protection applications. The unit features a piezoelectric sensing element and a welded hermetic stainless steel housing rated IP68.

Key features

• USB programmable (see configuration sheet supplied with switch for exact settings)
• Alarm threshold range: 0.25 to 5 in/sec pk (4.5 to 90 mm/s rms)
• Frequency range: 2 to 1000 Hz
• Relay output: SPST, Form A or B MOSFET; latching or non-latching; normally open/closed options
• Power: 24 to 240 V DC/AC, 50/60 Hz
• Electrical connector: 2-Pin MIL-C-5015, top exit
• Internal sensing element: piezoelectric accelerometer
• Enclosure: welded hermetic stainless steel, IP68

Specification notes
[1] USB programmable - see configuration sheet supplied with switch for exact settings.
[2] See PCB Declaration of Conformance PS096 for details.

Performance

• Alarm Threshold (±10%): 0.25 to 5 in/sec pk (4.5 to 90 mm/s rms) [1]
• Frequency Range (±3 dB): 120 to 60 kcpm (2 to 1000 Hz)
• Hysteresis (% of Alarm Threshold): 3%, 6% or 10% [1]
• Residual Vibration Level: dependent or independent; 1 to 40% of alarm threshold [1]
• MAVT (sets alarm threshold to 2× actual vibration): enabled or disabled [1]
• Transverse Sensitivity: <7%
• Power On Delay: 3 or 20 s; Startup Delay: 1–60 s or 1–30 min; Operational Delay: 1–60 s [1]
• Relay options: SPST, Form A or B MOSFET; latching/non-latching; normally open/closed

Environmental

• Operating temperature: -40 to 185 °F (-40 to 85 °C)
• Storage temperature: -40 to 257 °F (-40 to 125 °C)
• Shock overload limit: 5000 g pk (49050 m/s² pk)
• Enclosure rating: IP68

Electrical

• Power required: 24 to 240 V DC/AC 50/60 Hz
• Current rating (relay closed): 500 mA
• Leak current (relay open): ≤1 mA
• Electrical isolation (case): >100000000 Ohm
• Electrical connector: 2-Pin MIL-C-5015 (top exit)

Physical

• Size - Hex: 1.25 in
• Size - Height: 2.6 in (66 mm)
• Weight: 5.2 oz (148 g)
• Mounting thread: 1/4-28 female; mounting torque: 3 to 5 ft-lb (4 to 7 Nm)
• Sensing element: piezoelectric accelerometer
• Housing material: stainless steel; welded hermetic sealing

Accessories (supplied)

• 081A41 — Mounting stud, 1/4-28 x 0.563 in stainless steel screw with hex socket and brass tip — Qty: 1
• M081A61 — Mounting stud, 1/4-28 to M6x1 x 9.65 mm long, BeCu with shoulder — Qty: 1

Optional versions

• (M) Metric mount

Notes
* All specifications are at room temperature unless otherwise specified.
