LCD display DIS6

colornumericpicking

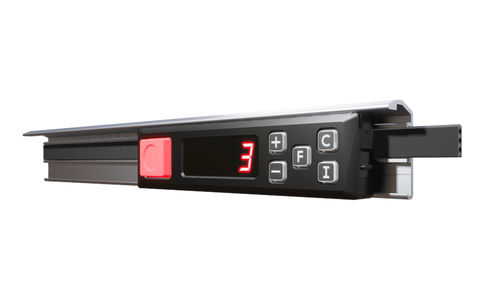

Pcdataʼs DIS6 display is a compact, bright display specifically designed for Pick- and Put to Light applications. Pcdataʼs display systems are proven to be extremely efficient methods at providing paperless picking or putting instructions. Not only does it show all necessary information clearly and brightly, it can also provide adjustments or communicate actions back to the host system. The display can easily be installed at any location onto the mounting rail. The power and communications cable run through the mounting rail, while piercing pins at the back of the display connect the display to the cable. The cable runs from the power and data device (PDM10B or PowerCom) to all displays: No other devices or connectors are needed, making this system installation and configuration extremely easy and flexible to change. The DIS6 has four alpha numeric characters, which indicate the number of items to be picked or put away. These alphanumeric characters can also provide additional information to the workers, like the distinction between a single unit pick, or a whole container (whole pack, box or basket). The large, highly visible pick indicator button, doubles as confirmation push button, and can light up in any color. When lit it immediately draws attention to the right location. The push button has a long lifespan, is ergonomic and is easily pushed when working at a high speed.
