Cable detector PCE-160 CB
for the automotive industry

cable detector
cable detector
cable detector
Add to favorites
Compare this product


Characteristics

Detected entity
cable
Application
for the automotive industry

Description

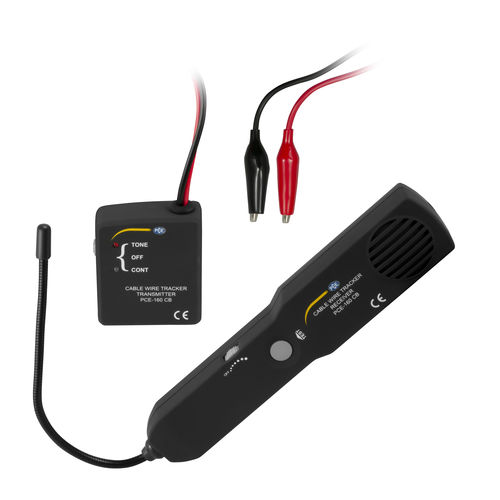

The PCE-160 CB line locator is a direct line locator for hard-to-reach lines. The line locator finds its application, for example in the automotive sector. When using the line locator, the transmitter is connected to the lines to be detected using the crocodile clips. The transmitter of the line locator generates a pulse signal after being turned on. With the receiver of the line locating device, the pulse signals can then be detected, for example on a cable harness. This allows a quick location of the line. Line detectionBy beep BeepsPulsating sound, lasting sound Further measurement functionContinuity test Transmitter connectionAlligator clips Receiver connectionHeadphone jack Environment operations0 ... 50°C / 32 ... 122°F, 5 ... 95% rh Power supply2 x 9V block battery (incl.) DimensionsReceiver: 260 x 44 x 25 mm Probe length: 180 mm, semi-rigid Transmitter: 70 x 56 x 22 mm / 2.8 x 2.2 x 0.9 in Connecting cable: approx. 600 mm / 23.6 in Weight Receiver: approx. 202 g / < 1 lb Transmitter: approx. 61 g / < 1 lb specifications without battery Connection cable: approx. 600 mm / 23.6 in
