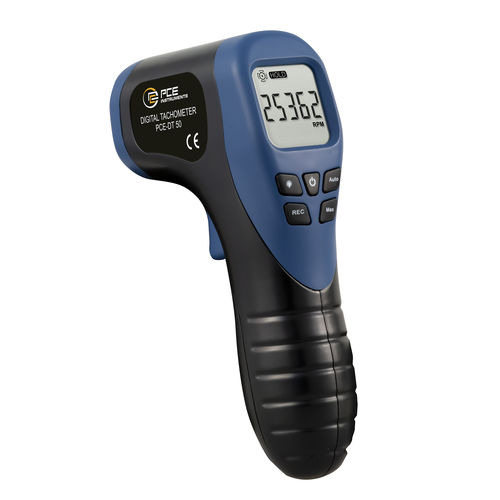

Non-contact tachometer PCE-DT 50

handhelddigitalfor motors

The pistol gauge PCE-DT 50 in the form of a pistol is ideal for quick control of speeds. This hand-held tachometer measures the rotational speed of moving objects, such as shafts, drives, pinions, etc. The hand tachometer uses a laser that emits light and a receiving diode that detects the light-dark contrast of the reflected light. The hand tachometer measures the speed in the range of 2.5 ... 99,999 rpm (RPM). The speed is shown on the illuminated display of the tachometer. The measuring distance from the hand tachometer is 50 ... 500 mm / 2 ... 19.7 in. Measuring range2.5 ... 99,999 rpm (RPM) Measurement accuracy ± 0.02% + 1 digit Resolution2.5 ... 999 rpm: 0.1 rpm, 1000 ... 99,999 rpm: 1 rpm Measuring distance50 ... 500 mm / 2 ... 19.7 in Measuring rate0.5s (over 120 rpm) Storage60 individual data storage Automatic shutdown After 20 s Power supply9V block battery Operating conditions0 ... 50°C / 32 ... 122°F, 10 ... 90% rh Storage conditions-10 ... 60°C / 14 ... 140°F, 10 ... 75% rh Dimensions145 x 90 x 35 mm / 5.7 x 3.5 x 1.4 in WeightApprox. 120 g / < 1 lb incl. battery
