Process monitoring gas monitoring equipment PCE-GA 25

securityfor chemical analysisfor environmental analysis

Description

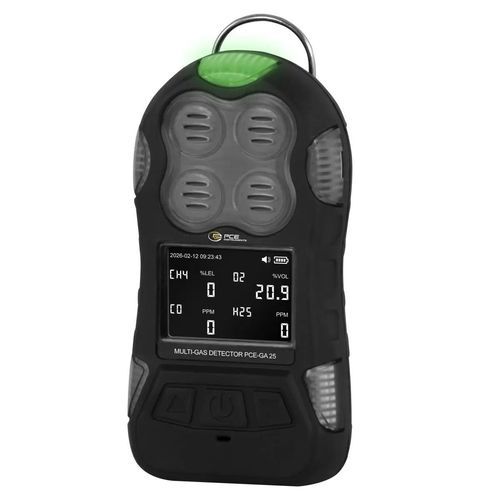

The portable gas detector is a multi-gas measuring instrument for simultaneous monitoring of up to four gases (flammable gases, O2, CO, H2S). It uses electrochemical and catalytic sensors and provides measurement accuracy of ≤ ±5 % of full scale. The device features a backlit LCD display (real-time values, system status, date/time, battery level). If preset alarm limits are exceeded, warnings are given via visual, audible and vibration alarms. Alarm parameters (low/high alarm, STEL, TWA) are user‑adjustable. The unit offers several operating modes (measurement, self-test, single-point and multi-point calibration) and internal storage for alarm events. Operation is via an intuitive keypad with menu navigation. Power is supplied by an internal lithium‑ion battery providing up to 8 h of operation. The housing is impact‑resistant plastic with non‑slip rubber, protection class IP66; explosion protection Ex ib IIB T3 Gb. Suitable for industry, mining, wastewater plants and chemical production.

Features

• Simultaneous measurement of up to 4 gases
• Visual, audible and vibration alarm
• Backlit LCD display with real‑time values
• Internal storage for alarm events
• Rugged housing, protection class IP66
• Li‑ion battery for up to 8 h operation
• Self‑test and calibration functions

Specification (table - short)
Gas — Flammable gases
Measuring range — 0 ... 100 ppm
Resolution — 1 ppm
Accuracy — ±5 % FS

Gas — H2S
Measuring range — 0 ... 100 ppm
Resolution — 1 ppm
Accuracy — ±5 % FS

Gas — CO
Measuring range — 0 ... 1000 ppm
Resolution — 1 ppm
Accuracy — ±5 % FS

Gas — O2
Measuring range — 0 ... 30 % vol
Resolution — 0.1 % vol
Accuracy — ±5 % FS

General technical data
Display type — Backlit LCD
Display size — 2 inch
Storage medium — Internal memory
Storage capacity — 100 data sets
Response time — 60 s (T90)
Operating time — 8 h
Charging time — 6 h
Alarm — visual, audible, vibration
Alarm modes — Low alarm, High alarm (see manual for ranges)
Menu languages — English (GB), English (US), Spanish, Chinese
Protection class (device) — IP66
Power supply — 5 V DC
Battery — 1 x 3.7 V internal, lithium‑ion
Capacity — 1800 mAh
Operating conditions — -10 ... 50 °C, 95 % RH
Storage conditions — -10 ... 50 °C, 95 % RH
Dimensions (L x W x H) — 137 x 72 x 32 mm
Weight — 258 g

Delivery content

• 1 x Portable gas detector PCE-GA 25
• 1 x Charger 5 V, 1 A
• 1 x USB charging cable
• 1 x Calibration cap
• 1 x Carrying case
• 1 x Operating manual

Characteristics / Technical specifications

• Gas detection: flammable gases, O2, CO, H2S
• Measuring ranges: Flammable gases 0–100 ppm; H2S 0–100 ppm; CO 0–1000 ppm; O2 0–30 % vol
• Resolution: 1 ppm for flammable gases, H2S and CO; 0.1 % vol for O2
• Accuracy: ±5 % FS
• Response time: 60 s (T90)
• Storage capacity: 100 data sets
• Display: 2" backlit LCD (real‑time values, status, date/time, battery)
• Alarm types: visual, audible, vibration; adjustable alarm thresholds (low/high, STEL, TWA)
• Power: 5 V DC; Battery: 1 x 3.7 V internal, Li‑ion, 1800 mAh (up to 8 h operation, ≈6 h charge)
• Housing: impact‑resistant plastic with non‑slip rubber, protection class IP66
• Explosion protection: Ex ib IIB T3 Gb
• Operating and storage conditions: -10 ... 50 °C, up to 95 % RH
• Dimensions: 137 x 72 x 32 mm; Weight: 258 g
• Menu languages: English (GB/US), Spanish, Chinese
