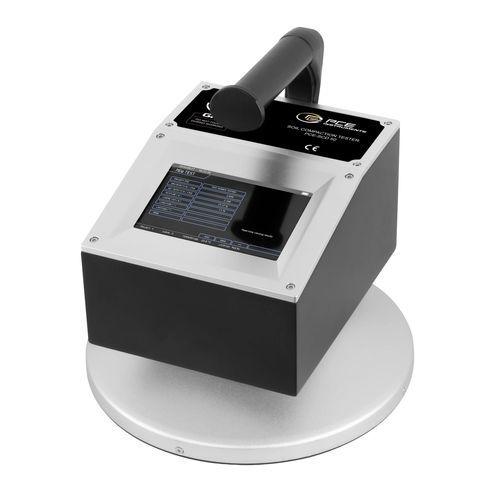

Density meter with display PCE-SCD 50

measuring devicedigitalportable

Description
The PCE-SCD 50 soil density meter is a portable, non-radioactive instrument for in-situ measurement of wet and dry density, compaction percentage and moisture content. It is designed for use in road construction, foundation works, landfill construction and environmental or hydraulic engineering to assess soil quality and support decisions on treatment, compaction or stabilization. Integrated GPS records exact location for each measurement. The 5-inch touchscreen provides intuitive operation. Typical measurement time: approx. 5 seconds. Internal memory stores up to 4200 readings. Software is included for data transfer and analysis. The device also measures soil temperature and displays a status bar with GPS, memory capacity and battery indicators, date and time.

Highlights

• Wet and dry density, % compaction, % moisture
• Non-radioactive measuring method
• Measurement time approx. 5 seconds
• Internal memory for up to 4200 values
• Integrated GPS for location tagging
• 5-inch touchscreen for on-site operation
• Status bar with GPS, memory and battery info
• Software included for data analysis
• Measures soil temperature

Delivery scope

• 1 x Density Meter PCE-SCD 50
• 1 x mains adaptor 5 V / 1 A
• 1 x USB cable
• 1 x carrying case
• 1 x software on USB pen drive

Technical specifications

• Measuring functions: Wet density, Dry density, % moisture, % compaction
• Unit: g/m³
• Standards: ASTM D4318, ASTM D422, ASTM D4698, ASTM D1557
• Measurement time: approx. 5 seconds
• Measuring field: 25 cm
• Measuring depth: 50–300 mm
• Display: 5-inch touchscreen
• Internal memory: up to 4200 measured values
• Battery: Li-Ion 3.7 V / 10400 mAh (operating time ≈ 7 h)
• Power supply / charger: Input 220 V / 50 Hz, Output 5 V (Euro plug)
• Protection class: IP52
• Operating conditions: -7 … 43 °C, 0 … 95 % RH
• Storage conditions: -7 … 43 °C, 0 … 95 % RH
• Weight: 2.84 kg
• Dimensions (H x D): 240 x 250 mm
