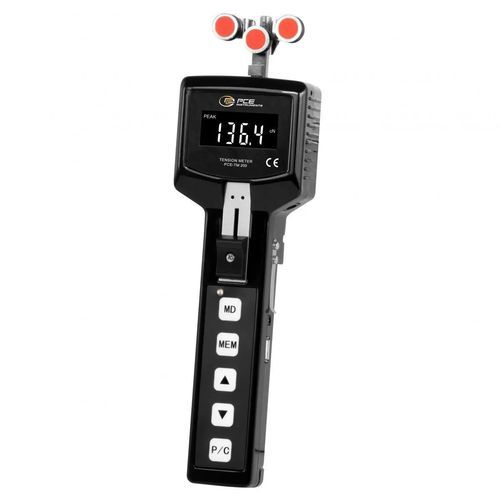

Digital dynamometer PCE-TM 200

portablewith data loggerwith LCD display

Description
The PCE-TM 200 tension force gauge measures tensile tension of filaments and linear materials. This handheld digital instrument offers three selectable operating modes: real-time, hold and peak. It supports five measurement units (cN, oz, kgf, N, lb) with an accuracy of ±2.5 % FS. An integrated USB interface enables transfer of recorded data to PC software and export as xlsx. Up to 41 data groups can be stored for process monitoring. Variable thickness adjustment and a 65 mm measuring head width allow use on a range of material diameters. Typical applications include wire & cable, textile & chemical fibres, metal wire and carbon fibre industries. The instrument is powered by 2 x 3.7 V AA rechargeable batteries (850 mAh), rechargeable via the supplied power adapter.

Features

• Portable electronic tension meter for tensile measurements
• Three operating modes: real-time, hold, peak
• Five selectable units: cN, oz, kgf, N, lb
• USB interface for PC software and data export
• Adjustable thickness setting for different material diameters
• Storage capacity: up to 41 data groups

Specification
Force:
Measuring range: 4 ... 200 cN
Resolution: 1 cN
Accuracy: ±2.5 % FS

General technical data:
Measuring functions: Peak, Real-time, HOLD
Unit(s): cN, kgf, lb, oz, N
Display type: LCD
Display size: 1.85" LCD
Storage medium: Internal memory
Storage capacity: 41 data sets
Interface: USB
Calibration material: PA monofilament Ø 0.12 mm
Measuring head width: 65 mm
Menu language: English (GB), English (US)
Protection class (device): IP52
Battery: 2 x 3.7 V AA rechargeable (850 mAh)
Operating conditions: 5 ... 40 °C, 10 ... 90 % r. F.
Storage conditions: 5 ... 40 °C, 10 ... 90 % r. F.
Dimensions (L x W x H): 270 x 80 x 55 mm
Weight: 590 g

Scope of delivery

• 1 x Force gauge PCE-TM 200
• 1 x USB cable
• 1 x Power adapter 12 V DC / 0.5 A
• 1 x Carrying case
• 1 x PC software (download)
• 1 x User manual

Technical specifications

• Measuring range: 4 ... 200 cN
• Resolution: 1 cN
• Accuracy: ±2.5 % FS
• Measuring head width: 65 mm
• Storage capacity: 41 data sets
• Interface: USB
• Battery: 2 x 3.7 V AA (850 mAh)
• Display: 1.85" LCD
• Protection class: IP52
• Dimensions: 270 x 80 x 55 mm
• Weight: 590 g
