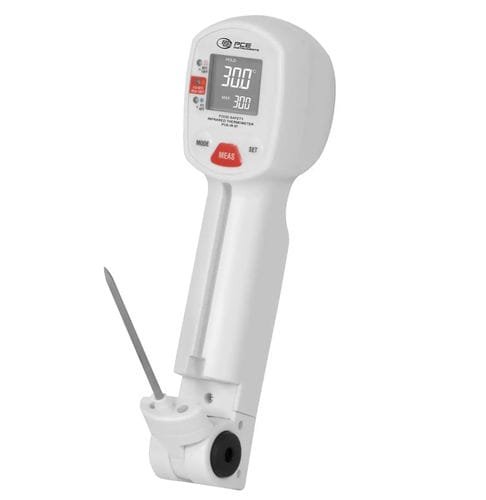

Infrared thermometer PCE-IR 97

probeRTDwith LCD display

Description
The PCE Instruments PCE-IR 97 is a dual-mode thermometer combining non-contact infrared surface measurement and a penetration RTD probe for internal temperature readings. It is suitable for food monitoring and general temperature control tasks. Infrared measurement covers -40 … +280 °C and probe measurement covers -40 … +200 °C. The instrument offers fast response (<500 ms), a 20:1 optics ratio, Hold/Max functions and a countdown timer with alarm (up to 10 h). Temperature can be displayed in °C or °F. Power is supplied by a 9 V block battery.

Features

• Infrared and probe (RTD) measurement
• Max and Hold functions
• Automatic data hold
• Response time <500 ms
• Optical ratio (D:S): 20:1
• Spectral range: 8 ... 14 µm
• 3 LED temperature-range indicators
• Integrated countdown timer with alarm
• Temperature display in °C or °F

Specification
Infrared temperature — range: -40 ... +4 °C; resolution: 0.1 °C; accuracy: ±2 °C
Infrared temperature — range: 4 ... 65 °C; resolution: 0.1 °C; accuracy: ±1 °C
Infrared temperature — range: 65 ... 280 °C; resolution: 0.1 °C; accuracy: ±1.5 % of reading
Infrared temperature — range: -40 ... +39.2 °F; resolution: 0.1 °F; accuracy: ±3.6 °F
Infrared temperature — range: 39.2 ... 150 °F; resolution: 0.1 °F; accuracy: ±1.8 °F
Infrared temperature — range: 150 ... 536 °F; resolution: 0.1 °F; accuracy: ±1.5 % of reading
Probe sensor (RTD) — range: -40 ... -5 °C; resolution: 0.1 °C; accuracy: ±1 °C
Probe sensor (RTD) — range: -5 ... +65 °C; resolution: 0.1 °C; accuracy: ±1 °C
Probe sensor (RTD) — range: 65 ... 200 °F; resolution: 0.1 °F; accuracy: ±1 % of reading
Probe sensor (RTD) — range: -40 ... +23 °F; resolution: 0.1 °F; accuracy: ±1.8 °F
Probe sensor (RTD) — range: 23 ... 150 °F; resolution: 0.1 °F; accuracy: ±1.8 °F
Probe sensor (RTD) — range: 150 ... 392 °F; resolution: 0.1 °F; accuracy: ±1 % of reading

General technical data
Measurement functions: HOLD, MAX
Units: °C, °F
Display type: LCD
Display size: 1.4"
Sensor: RTD probe
Response time: 500 ms
Auto power off: 10 s
Optical ratio: 20:1
Spectral range: 8 ... 14 µm
Probe length: 75 mm; housing: 200 x 52 x 58 mm
Protection class: IP65
Power supply: 1 x 9 V block battery (alkaline-manganese)
Capacity: 550 mAh; Energy: 4.95 Wh
Operating conditions: -10 ... 50 °C, 100 % r. F.
Storage conditions: 0 ... 50 °C, 100 % r. F.

Characteristics / technical specifications (short list)

• Model: PCE-IR 97
• Brand: PCE Instruments
• Measurement modes: Infrared (non-contact) and RTD probe (penetration)
• Infrared overall range: -40 ... +280 °C (divided into accuracy ranges)
• Probe overall range: -40 ... +200 °C (divided into accuracy ranges)
• Resolution: 0.1 °C / 0.1 °F
• Optical ratio: 20:1
• IR spectral range: 8 ... 14 µm
• Response time: <500 ms
• Display: LCD 1.4"
• Functions: Hold, Max, auto data hold, countdown timer with alarm (up to 10 h)
• Power: 1 x 9 V block battery (alkaline-manganese)
• Protection class: IP65
• Housing dimensions: 200 x 52 x 58 mm; Weight: 180 g
• Menu language: English (US), English (GB)
