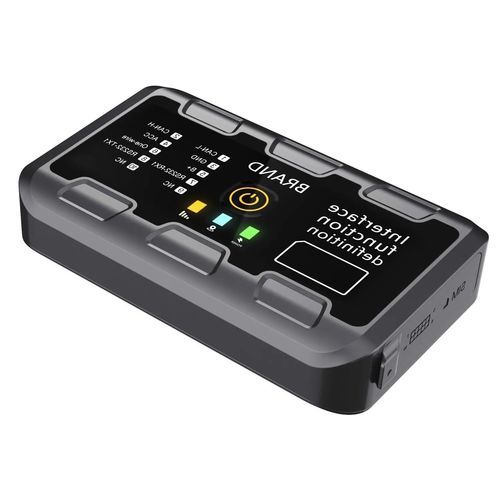

LTE vehicular tracker PB002

GPSGLONASS

PDS professional commercial vehicle 4G tracker, which can be used to locate vehicle location information and view vehicle working track. At the same time, due to the compact design of PB002, it can be installed in a hidden location of the vehicle and is not easy to be found. Highlights of PB002 LTE Waterproof Standby Asset Tracker Integrated LTE-M communication module, high-precision Beidou dual-mode GPS module. Compatible with 9-36V power systems for passenger cars and commercial vehicles, so it can be installed on Bus, taxi, truck, personal car, business car etc. It is able to monitor vehicle location, detect driving behavior, voice communication and remote control. It can extend various peripherals with I/O interfaces, such as temperature sensor, door detection sensor and camera etc. An intelligent device for fleet management. The vehicle running status, vehicle condition data, vehicle fuel consumption data, driver control data, etc. Item - Description Indicator - 1: Power indicator: green 2: Positioning status indicator: blue 3: CAT M1 status indicator: orange CPU - ARM 32BIT Cortex-M4 CPU ( GD32F303RE ) , 120Mhz Max frequency, GNSS positioning module - GNSS module : Support GPS, GLONASS, BD&QZSS; Support A-GPS function CEP50: 2.5 meters (open field) Capture Sensitivity: -148 dBm Tracking Sensitivity: -162 dBm Cold start: 32S typical(open sky) Warm start: 1S
