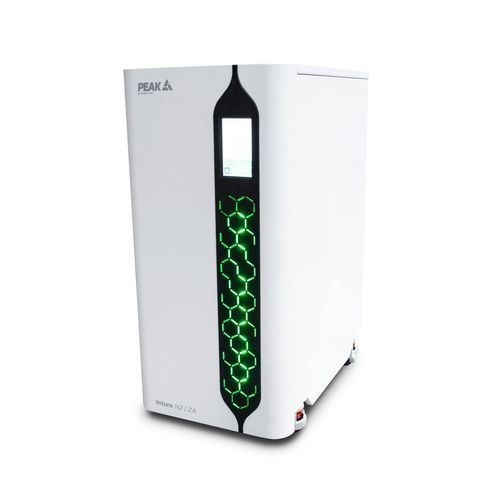

High-purity nitrogen generator Intura N2|ZA 1000

ultra high-purityzerolaboratory

Engineered to provide a constant and consistent source of nitrogen and zero air for carrier and detector make up gas. This 2-in-1 Nitrogen and Zero Air gas generator with an integrated air compressor can provide high-purity nitrogen and zero air to your GC at flow rates to suit your GC requirements. PEAK’s uniquely designed CAT chamber ensures increased contact time to eliminate ambient CH4 levels to <0.05ppm in outlet air. PEAK’s Purity safeguard feature delivers only UHP gas to the application, greatly reducing the risk to components which are sensitive to contact with high concentrations of O2. With Intura, GC users can look forward to complete peace of mind from a safe, dependable and convenient gas supply solution. - Application Types: GC & GC-MS - Part number: 3305329-1-03 (120v), 3305329-2-03 (230v) - Status: Available - Gas types: Nitrogen, Air - Integrated compressor: Yes Features: - Smallest 2-in-1 Zero Air generator with Integrated air compressor - Up to 1000cc/min UHP N2 and 3.5LPM Zero air - Ultra-fast start-up - High purity Nitrogen produced in under 45 mins - Patented AirMax™ intake filter - Purity safeguard feature - Compact design, saving valuable lab bench space - Improved, more efficient CAT chamber - Low power consumption, reducing power draw and operational carbon footprint - Highest pressure output from compressor-based UHP N2 & ZA generator - High-quality touchscreen for operation, reminders and alerts - 12-month comprehensive warranty, with the option to extend up to 5 years Gas Specifications: - Nitrogen: - Max Gas Flow: 1000cc/min - Max Output Pressure: 100psi/6.9bar - Max Purity: 99.9995% - Air: - Max Gas Flow: 3500cc/min - Max Output Pressure: 100psi/6.9bar Site & Installation: - Power Consumption: 636W - Voltage: 100 / 240V - Frequency: 50 / 60Hz - Noise Level: <60 - Accreditations: CE, FCC, NRTL, IP20, ISTA Dimensions & Weight: - Size (HxWxD) mm: 696 x 330 x 586 mm - Size (HxWxD) Inches: 27.4 x 13 x 23.1 inches - Generator Weight: 60kg / 132lbs Technical Specifications: - Application Types: GC & GC-MS - Gas Types: Nitrogen, Air - Integrated Compressor: Yes - Max Gas Flow (Nitrogen): 1000cc/min - Max Output Pressure: 100psi/6.9bar - Max Purity (Nitrogen): 99.9995% - Max Gas Flow (Air): 3500cc/min - Power Consumption: 636W - Voltage: 100 / 240V - Frequency: 50 / 60Hz - Noise Level: <60 - Accreditations: CE, FCC, NRTL, IP20, ISTA - Size (HxWxD) mm: 696 x 330 x 586 mm - Size (HxWxD) Inches: 27.4 x 13 x 23.1 inches - Generator Weight: 60kg / 132lbs
