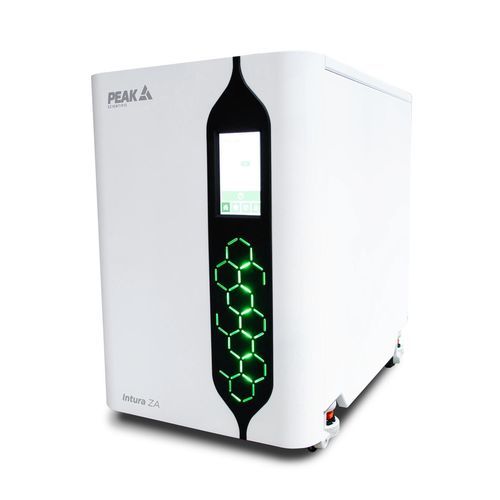

Dry gas generator Intura ZA 15000

zerolaboratoryfor gas chromatography

Designed to supply clean, dry, hydrocarbon-free air for detector gas to your GC. PEAK’s uniquely designed CAT chamber optimizes the path of compressed air as it enters the CAT chamber, ensuring increased contact time to eliminate ambient CH4 levels, from 100ppm to <0.05ppm in outlet air. This efficient design operates at a lower temperature, reducing power consumption and heat output. Coming in a compact design, Intura Zero Air helps to minimize the total footprint required in the lab along with providing the flexibility to add or remove other Intura modules as your requirements evolve over time. - Zero Air generator with integrated air compressor - Up to 15L/min - Adjustable pressure up to 100psi - Highly efficient CAT chamber - Low power consumption, reducing power draw and operational carbon footprint - Compact design, saving valuable lab bench space - In-field upgrade to N2|ZA possible - High-quality touchscreen for operation, reminders and alerts - Advanced oil-free compressor - 12-month comprehensive warranty, with the option to extend up to 5 years Gas Type: Air Max Gas Flow: 15L/min Max Output Pressure: 100psi/6.9bar Power Consumption: 616W Voltage: 100 / 240V Frequency: 50/60Hz Noise Level: <60 Accreditations: CE, FCC, CSA, IP20, ISTA Size (HxWxD) mm: 496 x 330 x 586 mm Size (HxWxD) Inches: 19.5 x 13 x 23.1 inches Generator Weight: 40kg / 88lbs Integrated compressor: Yes Application Types: GC & GC-MS Part number: 3305331-1-04 (120v), 3305331-2-04 (230v) Status: Available - Warranty: 12-month comprehensive warranty, extendable up to 5 years (available only in select regions when purchased directly from PEAK Scientific)
