Twin-head forming machine FORM BROWN 80

tubepipe-endmetal

Overview

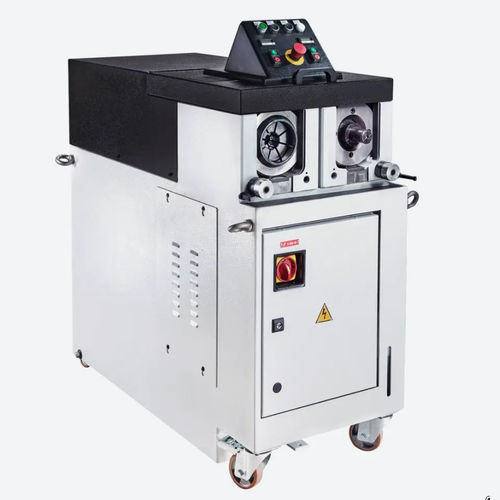

Compact industrial end-forming machine designed for tube end expansion, reduction, notching and chamfering. FORM BROWN 80 is mobile on a wheeled base and configured for integration into automated work cells.

FEATURES

• Multiple machining modes: expansion, reduction, notching and chamfering
• 2 workstations for alternating or simultaneous operations
• Quick-change tooling system for fast retooling
• Compact footprint and wheeled base for easy repositioning

Advantages

• Sturdy machine structure engineered to minimise vibrations and ensure precise tool use, improving finished-part quality and tool life
• Tooling sized for interchangeability with common market fixtures
• Quick-change tooling equipped with ergonomic handles; optional hydraulic assistance for heavy tools
• Hydraulic power unit housed inside the base; hydraulic cylinders located on the upper base can operate simultaneously
• Standard air-oil heat exchanger for continuous operation or hot climates
• Designed for easy integration into robotic or manipulator-based work islands with automatic loading/unloading
• No locking vices required, simplifying operations on pre-bent tubes
• Average cycle time approximately 1.5 seconds, depending on production type

Technical specifications

• Dimensions (L x W x H): 530 x 1250 x 1268 mm
• Weight: 530 kg
• Maximum tube size workable: 80 x 2 mm
• Work stroke: 0–60 mm
• Operating pressure: 100 bar
• Maximum work pressure: 140 bar
• Cylinder thrust: 100 kN
• Hydraulic unit motor power: 7.5 kW
• Work axis height: 950 mm
