Container spreader RAM2700

telescopic

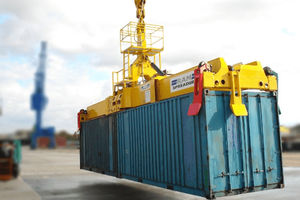

The 2700 series is a telescopic single lift container spreader for mobile harbour cranes and jib cranes, powered hydraulically and controlled from the crane's cabin. The spreader is fitted with a centre of gravity post that can be moved longitudinally to adjust the spreader’s centre of gravity for containers that are unevenly loaded. It has a pin connection for attaching to a crane hook or rotator. Six high torque hydraulically retractable gather guides are fitted resulting in two side guides fitted on each end and one guide at each corner of the spreader to aid alignment to the container. ISO floating twistlocks allow the crane operator to quickly locate and lock the spreader onto a container. The spreader's twin double box centre section has internally stiffened telescoping beams and steel wear plates on the end beams to ensure a long uptime. 2710 - 20ft|40ft - 35 tons 2720 - 20ft|40ft|45ft - 40 tons 2730 - 20ft|40ft - 40 tons Benefits Built to last With the double box centre section, internally stiffened telescoping beams and steel wear plates on the end beams, the 2700 model is built for a reliable operation in a demanding port environment. These are just some of the reasons why the model is built to last and avoid costly downtime. Ajustable The 2700 model is fitted with a centre of gravity post, which allows the spreader to adjust (0-1200mm) when the container is loaded unevenly.
