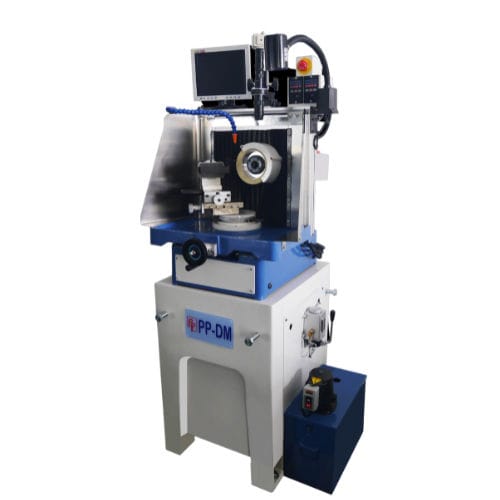

Workpiece sharpening machine PP-DM Series

semi-automaticnumerical controlmanually-controlled

The machine is mainly used for grinding PCD, PCBN, CBN and carbide tools. You can position the tool precisely and make sure the position, set the center of circle and radius by CCD and monitor. The CCD is for checking the surface of tools and measure the tools. Remark: For the diamond/ PCD form tools, we could offer customized service. Standard Accessories: 1. Vitrified Diamond Grinding Wheel-1 PC 2. Grinding Wheel Flange-1 SET 3. Flange Wrench-1 PC 4. Work Light-1 SET 5. Cooling System-1 SET 6. CCD & Monitor-1 SET 7. Rock Type Lubricator-1 SET 8. Variable Frequency Drive-2 SETS 9. Tools for General Use-1 SET Optional Accessories: 1. Vitrified Diamond Grinding Wheel 2. Vitrified Diamond Grinding Whee (Made in Japan) 3. Grinding Wheel Flange 4. Oil Stone 5. Auto Lubricator 6. Hollow Rotary Reducer 7. Human Machine Interface 8. Measurement Software for CCD 9. Full Guard Tools for General Use: 1. Hexagon Wrench-10 PCS 2. Screwdriver-1 PC 3. T-Type Wrench-1 PC 4. Open Wrench-4 PCS 5. Hexagon Wrench for Lens-2 PCS
