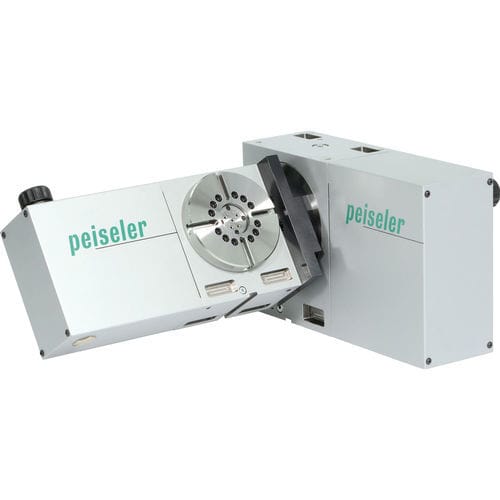

Electric rotary table ZATC Series
tiltingfor machine toolspneumatic

electric rotary table
electric rotary table
electric rotary table
Add to favorites
Compare this product

Characteristics

Operation
electric
Configuration
tilting
Applications
for machine tools
Other characteristics
pneumatic
Diameter

Max.: 260 mm (10 in)

Min.: 140 mm (6 in)

Description

The ZATC series are two-axis rotary tilt tables which are based on the ATC series. The modular character of the ZATC is ensured by the cubic housing shape of the ATC rotary tables. In the same way, we carried over the variety of options and offer this for various requirements. The pneumatic or hydraulic media supply of the table axis can be conducted through the rotary manifold in the mounting flange. It continues via the rotary manifold of the trunnion table axis into the central supply of the machine. The two-axis rotary tilt tables are available with one and multiple spindles. Designs with and without a counter bearing are available. The set-up in the machine tool can be realized via base plates or substructures, depending on the application requirements.
