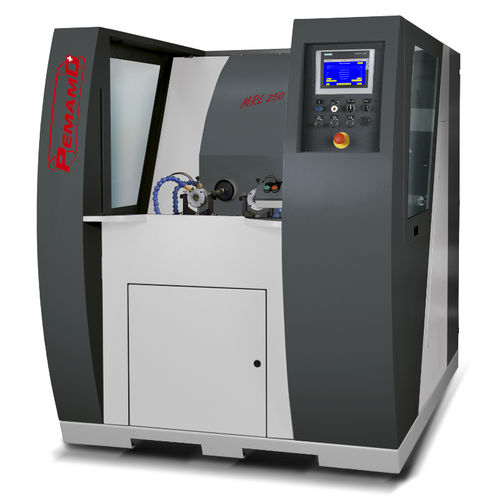

Multi-spindle honing machine MRL 250
automatic

multi-spindle honing machine
multi-spindle honing machine
Add to favorites
Compare this product


Characteristics

Number of spindles
multi-spindle
Other characteristics
automatic

Description

Technical specifications: 1 or 2 spindles Honing range Ø 1,5 - 70 mm Honing length 0 - 300 mm Spindle speed 150 - 2'500 RPM Automatic expansion system (1 - 300 sec/0,01 mm) Cooler positioned so that the heat does not influence the other modules 45 litres oil tank with filter paper Weight ~ 1'400 kg / ~ 1'500 kg Dimensions 2'100 x 1'400 x 1'700 mm Important benefits: Production machine for high precision. Automatic expansion allows a repeatability of the final size within 1 µm. Specific floating cardan developed according to applications. Honing movement driven by a linear motor. Accessories: Automatic paper tape filter unit combined with cartridge filter unit
