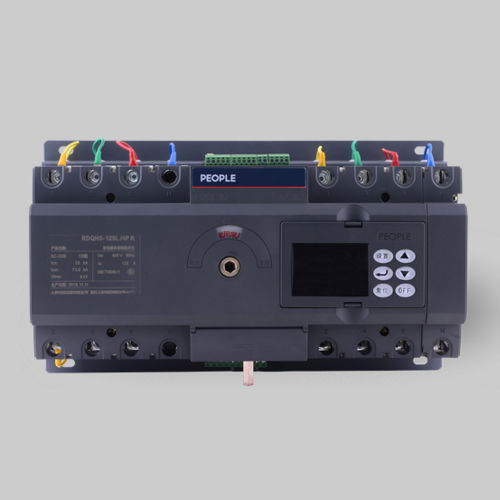

Automatic transfer switch RDQH5 series

manual

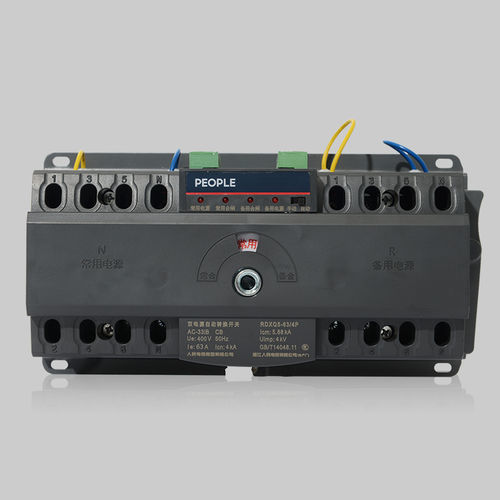

RDXQ5 sériés Automatic Transfer Switch(ATS) is applied to Power-system of AC50/60Hz, Rated operate voltage 400V, Rated operate current from 6A up to 63A. Normal, Backup interline of product can connect with Net-grid or one with Net-grid and another with generator power-supply. When one line has faults(phase-loss, overvoltage.undervoltage), ATS switches another circuit into line automatically for keeping the power-supply. It is mainly applied to important places, like high building, mall, bank, hospital, airplane, etc, which not allowed power-off. And ATS has short-circuit, overload protection to ensure the reliability and safety of power-supply. Standard: IEC/EN 60947-6-1, GB/T 14048.11 RDXQ5、RDQH5 series Automatic Transfer Switch Equipment Convenient Handle Design Design Handle inside or right side of product for convenient operating Convenient user operate set Operate set interface on front of product for easy setting RDQH5 series Automatic Transfer Switch(ATS) is applied to Power-system of AC50/60Hz, Rated operate voltage 400V, Rated operate current from 16A up to 630A. Normal, Backup interline of product can connect with Net-grid or one with Net-grid and another with generator power-supply. When one line has faults(phase-loss, overvoltage,undervoltage), ATS switches another circuit into line automatically for keeping the power-supply. It is mainly applied to important places, like high building, mall, bank, hospital, airplane, etc, which not allowed power-off. And ATS has short-circuit, overload protection to ensure the reliability and safety of power-supply. Standard: IEC/EN 60947-6-1, GB/T 14048.11
