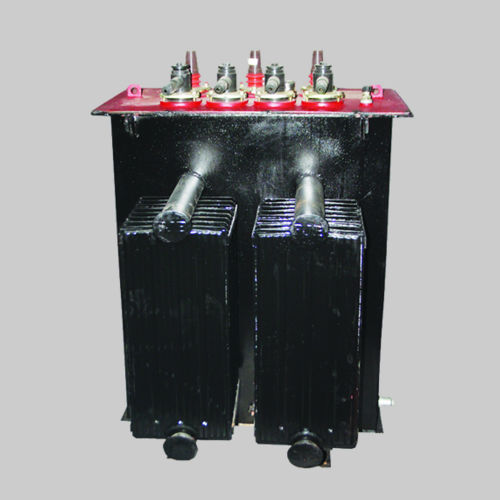

Distribution transformer 10KV UNDERGROUND

industrialfor electrical networksfor outdoor service

The underground combination transformer is a type of compact combination power distribution device, which integrate transformer, high-voltage load switch, and protective fuse in the oil tank. The underground combination transformer can be installed in the pit and will not take up any space above the ground. It can keep running while immersed in water and is maintenance-free. Based on the above characteristics, it is widely applied in North America. There is a large population in China and the urban population is especially dense, so application of underground combination transformers is of greatsignificance to saving the space occupied by power distribution facility in cities and improving the utilization rate of urban land. Consequently, it is of wide application value in urban network renovation and construction . Application conditions 1 * normal application conditions Ax environmental temperature: highest temperature: +40^ lowest temperature: -45^ highest average monthly temperature: +30^ highest average yearly temperature: +20^0 EK Installation environment: no explosive and corrosive gas, no violent impulse or impact at the installation site, capable of working when party or wholly immersed in water Cx ground accélération caused by earthquakes: horizontal direction: less than 3m/s2 vertical direction: less than m/s2 tipping degree: less than 3° 2^ spécial application conditions In case of spécial application conditions, please contact our company for consultation.
