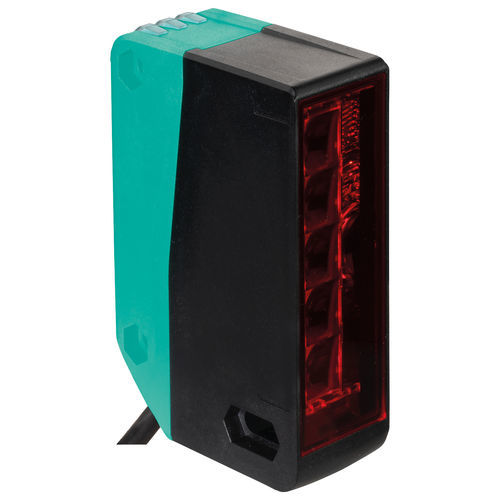

Retroreflective photoelectric sensor OGR4000-R305-2EP-IO-0,3M-V1

rectangularLEDred light

Key Benefits at a Glance: - Retroreflective area sensor with five light beams in a standard photoelectric sensor enclosure - Bright, highly visible transmitter beams guarantee convenient alignment of the sensor - Reliable detection of all surfaces irrespective of the object texture - Reliable small part detection for very flat objects with an irregular shape - Constant object detection from 2 mm within the entire detection area Product Description: Retroreflective area sensor, red light, max. detection range 4 m, light field height 60 mm, IO-Link interface, 2 push-pull outputs, fixed cable with M12 plug Technical Data: - Effective detection range: Standard mode: 0 ... 4 m; High resolution: 0 ... 2 m - Reflector distance: 0.2 ... 4 m H85-2 reflector - Threshold detection range: 4 m - Sensing range: see table - Reference target: H85-2 reflector - Light source: LED - Light type: modulated visible red light - LED risk group labelling: exempt group - Field height: 60 mm - Field width: 12 mm - Object size: Minimum 2 mm, 3 mm, 5 mm, 8 mm, 10 mm; position-independent detection within detection range - Number of beams: 5 - Opening angle: +/- 2 ° - Ambient light limit: EN 60947-5-2 - Resolution: see table Functional safety related parameters: - MTTFd: 674 a - Mission Time (TM): 20 a - Diagnostic Coverage (DC): 0 % Indicators/operating means: - Operation indicator: LED green: constantly on - power on; flashing (4Hz) - short circuit; flashing with short break (1 Hz) - IO-Link mode - Function indicator: Yellow LED: Permanently on: light path clear; Permanently off: object detected; Flashing (8 Hz) - end of compensation - Control elements: Teach-In key; 5-step rotary switch for operating modes selection Electrical specifications: - Operating voltage (UB): 10 ... 30 V DC; IO-Link mode: 18 ... 30 V DC - Ripple: max. 10 % - No-load supply current (I0): < 35 mA at 24 V supply voltage - Protection class: III Interface: - Interface type: IO-Link - IO-Link revision: 1.1 - Device profile: Identification and Diagnosis - I&D; Smart Sensor - SSP 2.1 - Process data: Input 8 Bit (switching signal 1 Bit, stability alarm 1 Bit, measurement value 6 Bit); Output 2 Bit (sensor control function 1 Bit, evaluation control function 1 Bit) - Vendor ID: 1 (0x0001) - Device ID: 0x101001 (1052673) - Transfer rate: COM2 (38.4 kBit/s) - Min. cycle time: 2.3 ms - SIO mode support: yes - Compatible master port type: Class A, Class B (use 3-pole adapter or 3-wire cable) Output: - Switching type: Adjustable; default: C/Q - Pin4: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link; /Q - Pin2: NPN normally closed / light-on, PNP normally open / dark-on - Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected - Switching voltage: max. 30 V DC - Switching current: max. 100 mA - Voltage drop (Ud): ≤ 1.5 V DC - Switching frequency (f): Standard mode: 500 Hz, High resolution: 250 Hz - Response time: Standard mode: 1 ms, High resolution: 2 ms Conformity: - Communication interface: IEC 61131-9 / IO-Link V1.1.4 - Product standard: EN 60947-5-2 Approvals and certificates: - UL approval: E87056, cULus Listed, class 2 power supply, type rating 1 - CCC approval: Not required for products rated ≤36 V Ambient conditions: - Ambient temperature: -40 ... 60 °C (-40 ... 140 °F); minimum during teach-in: -30 °C; permissible temperature change after teach-in: ±20 K - Storage temperature: -40 ... 70 °C (-40 ... 158 °F) Mechanical specifications: - Degree of protection: IP67 - Connection: 300 mm fixed cable with M12 x 1, 4-pin connector - Material: Housing: PC (Polycarbonate); Optical face: Plastic pane - Mass: 104 g - Dimensions: Height: 89 mm; Width: 25.8 mm; Depth: 59.5 mm Product Compliance: - Europe – CE - USA - cULus LISTED - IO-Link interface
