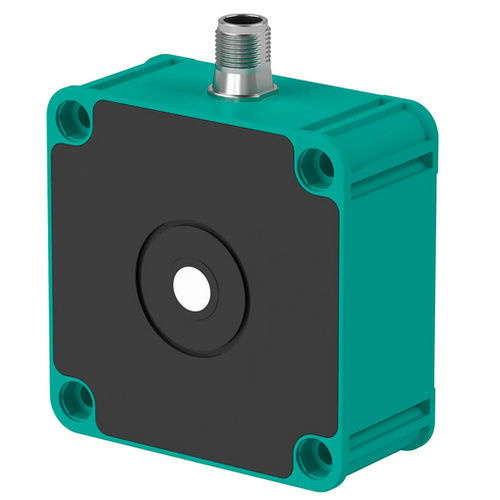

Ultrasonic sensor with IO-Link interface UB*-F42 series
Add to favorites
Compare this product
Characteristics
- Other characteristics
- with IO-Link interface
Description
Product overview
Functionality / Features
Technical specifications
Typical applications
Approvals / Notes
- One-head ultrasonic sensor for reliable object detection in industrial applications
- Model: UB500-F42-2EP-IO-V15 (UB-F42 series)
- Compact cubic design with selectable sound lobe
Functionality / Features
- 2 push-pull (4-in-1) outputs, configurable
- IO-Link interface for process data, parameterization and diagnostics
- TEACH-IN for fast on-site setup
- Short-circuit and reverse-polarity protected
Technical specifications
- Series: UB-F42
- Operating voltage: 10 ... 30 V DC
- Ripple: 10 % SS
- Output type: 2 push-pull outputs (configurable)
- Connection: variant-dependent (e.g., M12 connector on some variants)
Typical applications
- Presence and position detection in automation and material handling
- Detection of close objects thanks to very small blind zone
- Production lines requiring quick adjustment via TEACH-IN or remote parameterization via IO-Link
Approvals / Notes
- UL: cULus Listed, Class 2 Power Source
- CCC: products with service voltage ≤36 V are not subject to CCC marking
