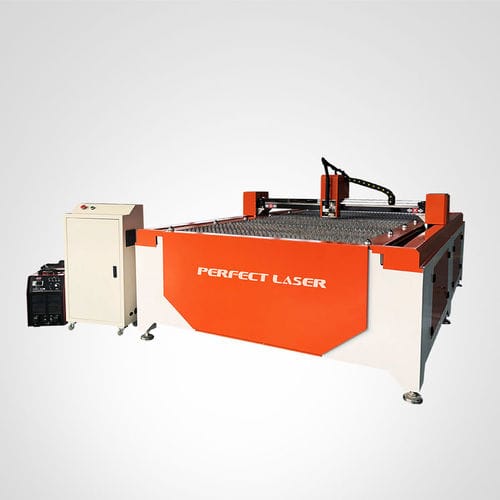

Plasma cutting machine PE-CUT-A1 orange
flamefor steelfor aluminum

plasma cutting machine
plasma cutting machine
plasma cutting machine
plasma cutting machine
plasma cutting machine
plasma cutting machine
Add to favorites
Compare this product


Characteristics

Technology
plasma, flame
Material
for steel, for aluminum, for stainless steel, for carbon steel, for brass
Product handled
sheet metal, for thin sheet metal, profile, sheet
Control type
CNC
Applications
for industrial applications, for shipbuilding, for construction machinery
Workpiece loading
manual loading
Configuration
flatbed
Other characteristics
completely automated, high-speed, precision, high-performance
X travel

1 m (3'03")

Y travel

2 m (6'06")

Cutting speed

Min.: 0 mm/min (0 in/s)

Max.: 3,500 mm/min (2.297 in/s)

Description

Features: 1) Advertising CNC plasma cutting machine adopt flat bed machine body, welding after the vibration aging treatment to eliminate stress, so that in the long-term use of no deformation 2) All mechanical drive system using rolling bearings and precision machining accuracy as 6 GB of precision gears mesh with the rack 3) CNC cutter's planetary reduce drive system, plasma metal cutting input and output error of only 16 arc minutes, at the same time, in the horizontal and vertical structure of the gear drive, an increase of automatic clearance compensation device so that CNC cutter can accurately drive the structure of the implementation of the directives issued by the CNC. 4) CNC cutter takes the initiative to end beam: vertical track for the introduction of automatic clamping device-oriented structure and there is no eccentric clamping structure, relying on automatic detachable power-oriented structure to make it two. In the track combined with the smooth running of the department will not have a wheel clamp tight or lax-phenomenon.
