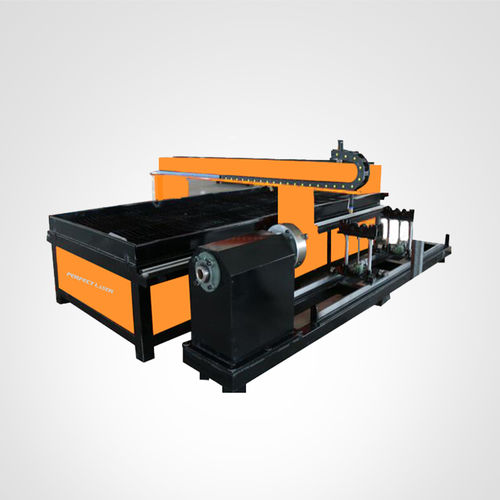

Plasma cutting machine PE-CUT-3015
for metalfor metal sheetstube

plasma cutting machine
plasma cutting machine
plasma cutting machine
plasma cutting machine
plasma cutting machine
plasma cutting machine
Add to favorites
Compare this product


Characteristics

Technology
plasma
Material
for metal
Product handled
for metal sheets, tube, roller
Control type
CNC
Associated function
engraving
Applications
for industrial applications
Workpiece loading
with automated loading
Configuration
large-format, 4-axis
Other characteristics
high-speed, high-performance, high-efficiency, high-power
X travel

Max.: 2 m
(6'06" )

Min.: 0 m
(0'00" )

Y travel

Max.: 3 m
(9'10" )

Min.: 0 m
(0'00" )

0 m
(0'01" )

Tube diameter

Max.: 200 mm
(8 in)

Min.: 30 mm
(1 in)

Description

►Product Introduction Perfect Laser PE-CUT-3015 Industrial grade high configuration integrated all-in-one plasma arc cutting machine can cut various metal sheet, round metal tubes, metal pipes, such as: steel plates, iron plates, etc. The electrical control part of this plasma arc cutting machine is composed of three sub-systems: CNC control system, electrical system and servo driving system. The CNC control system adopts the 4-axis transmission system designed by Shanghai University. The plasma arc voltage can be automatically adjusted. ►Product Features 1.PE-CUT-3015 industrial grade high configuration plasma arc cutting machine uses a 200 water-cooled plasma cutting torch, with a smooth cutting surface and good durability of machine parts, which reduces production costs and improves production efficiency. 2.PE-CUT-3015 uses high-tech, durable materials, greater torque, lower heat generation, less vibration, stable operation and good anti-interference ability. 3.This CNC plasma tube cutter adopts Pro-nest / pipe special nesting software to help customers using the metal sheet as reasonably as possible, to avoid waste and save costs. 4.PE-CUT-3015 has the function of automatically adjusting the plasma arc voltage. It can automatically adjust and select the most suitable cutting distance. The operation is simple, the sensitivity is very high, which effectively guarantees the cutting quality. 5.The CNC plasma tube cutter adopts the high-efficiency double-side driving system and stepping motor to make the whole machine running more smoothly than single-side driving.
