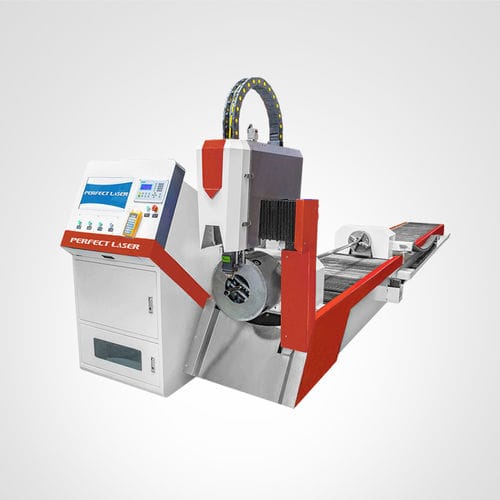

Fiber laser cutting machine PE-F2060
for metalfor metal pipestube

fiber laser cutting machine
fiber laser cutting machine
fiber laser cutting machine
fiber laser cutting machine
fiber laser cutting machine
Add to favorites
Compare this product


Characteristics

Technology
fiber laser
Material
for metal
Product handled
tube, for metal pipes
Associated function
hole punch
Other characteristics
high-precision
X travel

2,000 mm
(79 in)

Y travel

600 mm
(24 in)

Maximum cutting height

35 mm
(1.4 in)

Tube diameter

Max.: 300 mm
(12 in)

Min.: 20 mm
(1 in)

Laser power

Max.: 4,000 W

Min.: 500 W

Description

Perfect Laser is a manufacturer specializing in the development and production of laser pipe cutting machine. In order to meet the different needs from customers, this kind of laser pipe cutting machine has been developed and produced. It has two models: PE-F2060/PE-F3080. This laser pipe cutting machine uses two-side mutually moving laser cutting system to increase the area of processing. The negative pressure track-type working platform is equipped with left and right feeding and receiving devices, which makes tube laser cutter possible to discharge, cut, and receive material at one go, greatly reducing the time between processes, and improving work efficiency and processing output. Product Features: 1. This pipe laser cutting machine has the function of automatic positioning: only need to feed manually to complete the cutting, it is an ideal, efficient and convenient cutting machine for metal pipe laser cutting. 2. The laser pipe cutter covers a small area, the structure of the tube laser cutter is precise and beautiful, and the work is solid and firm. 3. High precision: Adopt imported IPG laser source to ensure good laser beam quality. The cutting tube length of the tube laser cutter can reach 6/8 meters, cutting pipe diameter of 20-200 mm /20-300 mm. Adjustable with scale and good cutting quality. 4. Batch processing: The daily output can reach 15 thousand pcs, the laser pipe cutter is suitable for mass cutting operations. 5. Suitable for thin pipe laser cutting, coat hanger tube, mop pipe, mosquito net pipe, curtain tube and so on.

VIDEO
