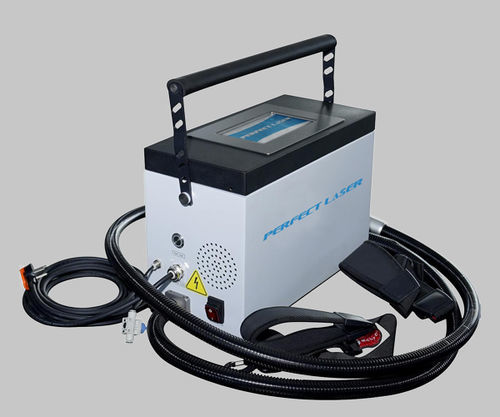

Laser cleaning machine PE-100Z

automaticfor outdoor usecompact

Machine overview
The PE-100Z is a handheld pulse fiber laser cleaner designed for selective removal of coatings, rust, oxides and contaminants on metal and other hard surfaces. Its compact ergonomic head and portable configuration allow use in confined areas, outdoor sites and elevated work positions.

Key features

• Handheld ergonomic design with optional back-mounted carrying configuration.
• Pulse fiber laser source available in 100-200W power variants.
• Adjustable laser frequency 20-200 kHz and power 10-100% for process control.
• Multiple operating modes via an intelligent control system for targeted cleaning.
• Small cleaning head (≈0.78 kg) for precision local cleaning.
• Air-cooled design and modular field lens options (F=210 mm default; 7 specifications available).
• Optional reserved interface for auxiliary gas (compressed air recommended with oil/water filtration).
• No chemical cleaning fluids or consumables required.

Applications

• Applicable industries: aerospace, automotive manufacturing, electronics & semiconductors, cultural heritage restoration, food processing.
• Applicable materials: metal parts, stone products, rubber molds and similar substrates.

Technical data

• Product name: Portable Handheld Pulse Fiber Laser Cleaning Machine (100-150-200W)
• Model: PE-100Z
• Brand Name: Perfect Laser
• Laser type: Fiber laser
• Laser power: 100-200 W
• Operating mode: Pulsed
• Center wavelength: 1064 ± 3 nm
• Laser pulse width: 150-340 ns
• Laser frequency range: 20-200 kHz
• Power adjustment range: 10-100%
• Scanning speed: ≤30000 mm/s
• Scanning range (default): 100 × 100 mm
• Fiber length: 3 m (customizable)
• Cleaning head weight: 0.78 kg
• Cooling method: Air-cooled
• Cabinet dimensions: 420 × 190 × 280 mm / 390 × 260 × 280 mm
• Total machine weight: 15-22 kg
• Total rated power: <900W
• Power supply voltage: 110-240 VAC
• Power supply frequency: 50/60 Hz
• Air pressure: 0.3-0.8 MPa
• Noise level: <60 dB
• Operating temperature: 5-40 °C
• Equipment standards: ISO9001, CE-Intertek

Commercial & delivery

• Minimum order quantity: 1 unit
• Packaging: sea-worthy or air-worthy packing
• Delivery time: 15 days (typical)
• Payment terms: L/C, D/A
• Supply ability: 5000 units per year

Notes
Auxiliary gas interface is optional; use compressed air with oil and water filtration. Install on a level surface, free from strong vibration and impacts.
