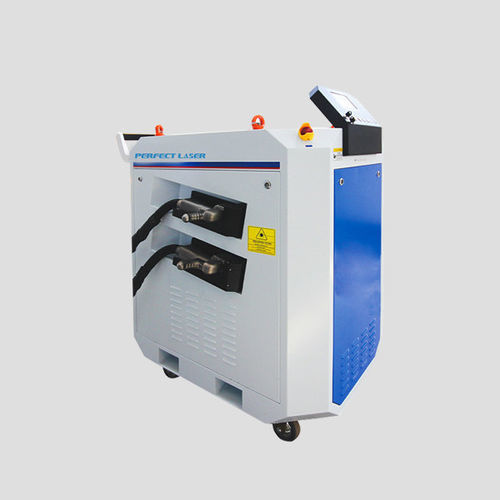

Fiber laser cleaning machine PE-1000Z

automaticindustrialmold

Product Description
The handheld dual-head fiber laser cleaning machine PE-1000Z is built for industrial surface preparation and removal of rust, paint and oil contaminants from metal components. It provides preset cleaning modes, auto-focus and surface adaptation for efficient one-touch operation.
Machine Features

• Dual laser cleaning heads deliver up to twice the processing throughput compared with a single-head system.
• Operation without chemical cleaners and zero consumables, enabling environmentally responsible cleaning.
• Partitioned independent control system for flexible use on identical or different parts; supports single-head or dual-head synchronous operation.
• High-precision cleaning allowing selective treatment of specific locations and sizes.
• Simple operation: power on and select a preset mode to start cleaning.
• Compact footprint: single machine space saves floor area.
• Non-contact process minimizes part wear and deformation.

Applications

• Applicable industries: mold manufacturing, semiconductor, sports equipment, automotive, metal fabrication, sheet metal, electronics.
• Application materials: iron, carbon steel plates, stainless steel plates, steel rails, aluminum plates, mold steel gears, steel pipes, copper alloys.

Technical Data
Product Name: Handheld Double-head Fiber Laser Cleaning Machine
Model: PE-1000Z
Brand: Perfect Laser
Laser Type: Domestic (H) Fiber Laser / Imported (I) Fiber Laser
Laser Wavelength: 1064nm
Cooling Method: Water Cooling
Fiber Length: 3~15m (customizable)
Laser Power: 1000~3000W (options: 1000W, 1500W, 2000W, 3000W)
Power Supply Voltage: AC110~220V/50-60Hz
Machine Power: 4.6~14kW
Cabinet Dimensions: 1504×790×1496 mm
Machine Weight: 410 kg
Chiller: Dual temperature optional
Optional Accessories: Handheld (SC) / Automation (JX)
Handheld Head Weight: Standard 1.4~2.3 kg
Operating Temperature: 0~45°C
Certification: CE
Place of Origin: Hubei, China Packaging & Delivery

• Minimum order quantity: 1
• Packaging suitable for sea or air transport
• Typical lead time: 15 days
• Logistics handled by professional agents

Competitive Advantage

• Multiple laser power options to match application requirements.
• Customizable fiber length and accessories for automation integration.
• CE certification and configurable laser source (domestic/imported).
• After-sales support and spare-part services available.
