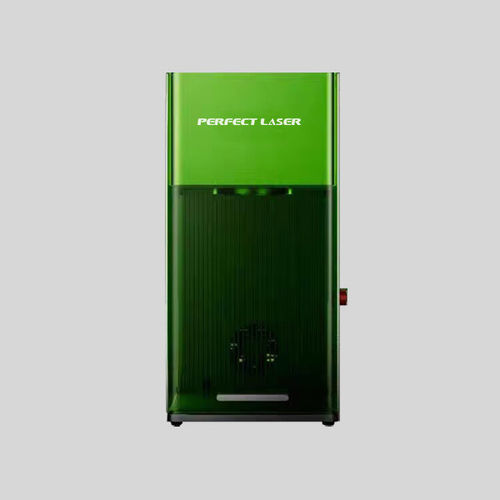

Laser marking and engraving machine PEDB-101

metalfor stainless steelstone

Product overview
This desktop galvanometer laser marking and engraving machine (Model PEDB-101) integrates a dual-light-source system: a 20W blue semiconductor laser and a 20W fiber infrared laser. Designed for precision marking, engraving and light cutting across a wide range of materials, it offers automatic and manual focusing, camera-based and border positioning, preview modes and both online (PC/mobile) and offline (touch panel/USB) operation suitable for prototype, creative and small-series production environments.

Commercial / logistic info
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: wooden case
Delivery Time: 5-7 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 sets/month
Warranty: 12 months

Product features

• Dual laser sources (blue semiconductor + fiber infrared) to maximize material compatibility.
• Multiple processing modes: flat, relief, curved surfaces; bitmap (engraving/relief) and vector (line engraving, filling, cutting) processing.
• Flexible operation: control via computer/mobile/tablet (XCS, LightBurn) or offline via built-in touch panel; supports USB and internal storage.
• Automatic and manual focusing with camera-assisted alignment and preview before processing.
• Built-in safety: overheat protection with automatic shutdown, protective cover with lid-open-to-stop interlock and safety key.
• High-speed preview and processing with precise repeatable positioning for production tasks.

Applications
Suitable for materials that absorb blue light (e.g. black alumina, certain plastics, acrylic, aluminum sheets, wood, corrugated paper, pebbles) and materials that absorb infrared (e.g. metals such as aluminum, copper, stainless steel, metal business cards). Typical uses: metal marking, nameplates, custom gifts, industrial part marking, prototyping and decorative engraving.

Technical Data
Basic Parameters:
Product Name: Desktop Dual Light Source Galvanometer Laser Engraving and Marking Machine
Model: PEDB-101
Laser Power: Blue semiconductor laser 20W; Fiber infrared laser 20W
Laser Wavelengths: Blue 455 nm ±15 nm; Infrared 1064 nm ±5 nm
Laser Spot Size: ≥0.08 × 0.10 mm (blue); ≥0.03 × 0.03 mm (infrared)
Laser Lifetime: ≥8000–10000 hours
Machine Dimensions: 493 × 253 × 373 mm
Power Supply: 24V–25V ⎓ 10.42–11A; total adapters power 250–275W (two adapters)
Operating Temperature: 0°C to +35°C; Storage Temperature: -10°C to +60°C

Software & Connectivity:
Connection: USB, Wi‑Fi, IP
Supported OS: Android, iOS, iPadOS, Windows, macOS
Supported Software: XCS, LightBurn
Supported Formats: JPG, JPEG, PNG, BMP, TIF, DXF, SVG, etc.

Processing Parameters:
Internal Processing Space: ≤220 × 220 × 145 mm (L×W×H)
Conveyor Processing Size: ≥220 × 500 × 81.5 mm
Maximum Processing Height / Max Rotational Diameter: 145 mm
Maximum Processing Speed: 10000 mm/s
Preview Speed: square border 24000 mm/s; irregular border 16000 mm/s
Control Precision: minimum control precision 0.00482 mm; repeat positioning precision 0.001006 mm
Positioning Methods: camera positioning, border positioning
Focusing Methods: automatic and manual focusing
Offline: touch control panel with 7 GB project file storage

Characteristics / Technical specifications

• Brand: Perfect Laser
• Model number: PEDB-101
• Product name: Dual-light Source Laser Marking Machine
• Laser power: 20W (blue) + 20W (fiber infrared)
• Laser wavelengths: 455 nm (blue); 1064 nm (infrared)
• Laser spot size: ≥0.08×0.10 mm (blue); ≥0.03×0.03 mm (infrared)
• Machine dimensions: 493 × 253 × 373 mm
• Internal processing space: ≤220 × 220 × 145 mm
• Max processing speed: 10000 mm/s
• Power supply: 24V–25V ⎓ 10.42–11A; total 250–275W (two adapters)
• Laser lifetime: ≥8000–10000 hours
• Supported software/formats: XCS, LightBurn; JPG/JPEG/PNG/BMP/TIF/DXF/SVG
• Connection: USB, Wi‑Fi, IP; Supported OS: Android, iOS, iPadOS, Windows, macOS
• Safety features: overheat protection, protective cover, lid-open-to-stop interlock, safety key
