Inkjet large format printer PE-UV6060

UV inkjet8-colorfor metal

Product description

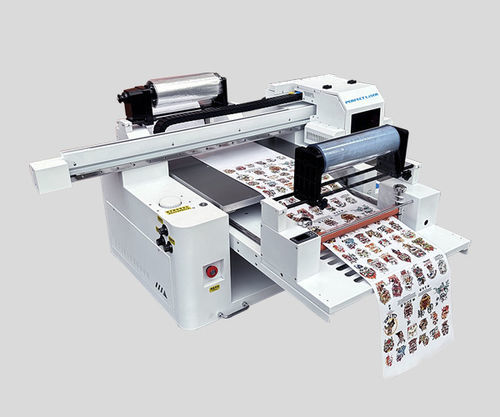

The PE-UV6060 is an integrated UV roll-to-roll and flatbed printer equipped with three imported high-precision print heads. It supports white ink and varnish (gloss) and is designed for continuous roll printing and rigid flat substrates. The machine is suitable for high-mix B2B production lines requiring variable-length output and tactile/relief finishes.

Machine introduction
The system uses three high-precision nozzles operating individually or simultaneously to increase throughput while maintaining even ink distribution. White and varnish channels allow opaque white layers and glossy relief effects. The printer handles flat panels and cylindrical/raised parts and includes automatic roll feeding for infinite-length printing.

Applications

• Advertising, signage, decoration, murals, exhibition panels and similar industrial printing applications.

Applicable materials

• Crystal labels and markers, mobile phone cases, PVC, acrylic, glass, wood and wood panels, plastics, leather, ceramic tiles, aluminum and metal plates, gift boxes and other rigid or flexible substrates.

Product features

• Three imported high-precision print heads: higher resolution and simultaneous multi-head operation for improved productivity.
• White ink and varnish (gloss) support: enables opaque white layers, gloss finishes and tactile concave–convex effects.
• Combined roll-to-roll and flatbed modes: continuous automatic roll feeding plus flat substrate capability for mixed-production workflows.
• Wide material compatibility and print height range of 0–200 mm; print width 60 cm and unlimited length in roll mode.
• Automatic ink circulation with stirring and automatic pre/post head cleaning for stable long runs.
• LED dual UV curing for instant drying and support for UV/textile/edible inks.

Technical data
Product name: Three-Head Crystal Label UV Roll-to-Roll & Flatbed Integrated Printer; Model: PE-UV6060; Number of print heads: 3; Print platform: Aluminum adsorption platform; Net weight: 110 kg; Gross weight: 140–170 kg (depending on accessories and ink); Product dimensions: 1600 × 1569 × 680 mm (L × W × H); Print size: 60 cm width × infinite length (roll mode); Print height: 0–200 mm; Ink cartridge: 8-color cartridge (C,M,Y,K,W,LC,LM,Varnish); Ink handling: Automatic ink circulation with stirring; Height adjustment: Automatic / electric; Servo motor: high-precision servo motor; Curing system: Dual LED UV lamp; Print speed: adjustable (high/medium/low), supports bidirectional printing; Ink types: UV / textile / edible; Software: imported color-management software (Ultraprint); Operating system: Windows; Power requirement: AC220/110±10%, 50–60 Hz; File formats: TIFF, JPG, PDF, PNG, JPEG; Cleaning system: Automatic pre/post-print head cleaning with flash spray and idle-time moisturizing spray system.
