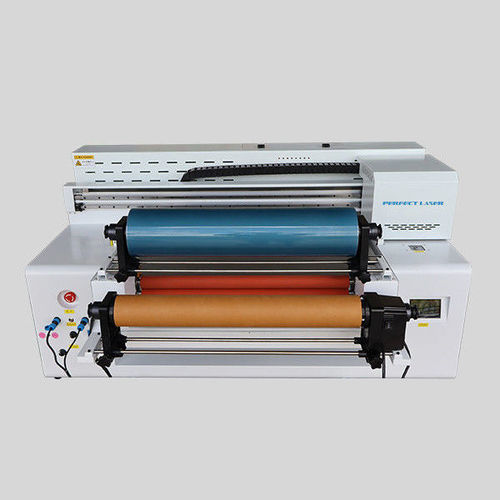

Inkjet label printer PE-UV9060

UV inkjetmulti-colorCMYK+White

Product overview
This PE-UV9060 UV flatbed roll-to-roll label printer combines flatbed and roll handling in a single machine. It integrates an independent intelligent control module with automatic nozzle cleaning, white-ink circulation and humidity adjustment to ensure stable production and reduced downtime. UV curing meets EU environmental standards and the system supports energy-efficient operation.

Product features

• Combined flatbed and roll-to-roll handling for versatile label and substrate printing.
• Built-in CNC touchscreen for intuitive operation and process control.
• High-precision adsorption platform and variable droplet technology with accuracy up to 0.01 mm; supports automatic one-click color printing and high-definition 3D relief effects.
• Eight-color workflow capability with a four-printhead layout for high-resolution bidirectional printing.
• Automatic nozzle cleaning and moisturizing plus white-ink stirring and circulation to prevent sedimentation and clogging.
• Water-cooled UV lamp with automatic cooling circulation to avoid overheating during continuous operation.
• Supports continuous workflows: unwinding, lamination, printing and peeling for automated label production.

Applications

• Applicable materials: crystal labels, wooden boards, acrylic, metalized PVC, leather, phone cases, handicrafts, thermal mugs, wine bottles.
• Applicable industries: label converters, personalized/custom printing, packaging, advertising, decoration and promotional products.

Technical data
Model: PE-UV9060
Product name: UV Flatbed Roll-to-Roll Integrated Printing Machine
Print size: 900 × 600 mm
Crystal scale (W×L): 600 × 100000 mm
Print height: 0–230 mm
Print speed: adjustable (high / medium / low)
X-axis drive: silent guide rail
Y-axis drive: double-guide screw drive
Printheads: 4 (imported ultra-light print heads)
Ink types: UV ink, textile ink; white ink circulation/stirring system
Ink consumption: ~1.5 ml per 1 cm²
UV light power: 100 W (water/air cooled)
Platform: adsorption platform with automatic adjustment and touchscreen
Optional: auto height measurement, ink shortage alarm, nozzle heating, visual positioning
Power requirement: AC 220/110 ±, 50~60 Hz, 800 W
Device size: 1520 × 1120 × 720 mm
Net weight: 270 kg; Gross weight: 300 kg
Packaging: fumigated export wooden case

Commercial information

• Minimum order quantity: 1 set
• Lead time: 7–12 working days
• Payment terms: L/C, T/T, Western Union
• Supply capacity: up to 500 units per year
• Packing details: wooden case for export

Specifications

• Model number: PE-UV9060
• Max print area: 900 × 600 mm
• Print height range: 0–230 mm
• Print speed: adjustable (high/medium/low)
• UV lamp power: 100 W
• Number of printheads: 4
• Estimated ink consumption: 1.5 ml per 1 cm²
• Power: AC220/110 ±, 50~60 Hz, 800 W
• Dimensions (device): 1520 × 1120 × 720 mm
• Net/Gross weight: 270 kg / 300 kg
