Digital data collector

pressuredisplaydata logger

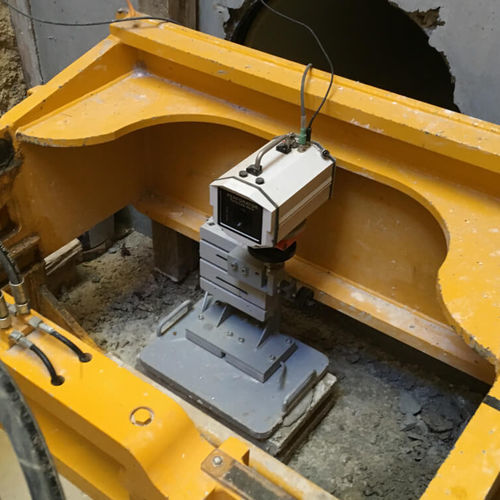

The PERFORCAM optical-electronic navigation system is used for pilot tube jacking with and without soil removal (RS-HV pipe control). The system consists of the PERFORLUX optical aiming device, a digital camera unit with GPS receiver – PERFORCAM, a TFT monitor with data logger and a length measuring unit. The newest version PERFORCAM AI offers an artificial intelligence for automated processes, digital recording and navigation of the pilot tube jacking. First, the direction and tilt of the camera unit and the auger drilling rig are adjusted as required. This is controlled via the target optics inserted in the control head or initial auger of the pipe control system, which is optically detected by the camera and displayed on the monitor. The control movement or position change takes place with the pilot bore via a control bevel on the control head and, on the pipe control system, via the deflection of the front pipe, which is also called the cutting ring. The control data stored with the data logger includes all relevant drilling parameters and is continuously recorded. The PERFORDAT measuring and data recording unit is used to record and log the jacking length and force exerted on the pipeline being laid. All relevant jacking data during the pipe-laying process is displayed and stored in real time. The internal display can be mirrored to your smartphone or desktop device via WiFi. The press force is determined via the pressure transmitters connected to the machine’s press cylinders. The length measurement during the installation of the pipes
