Brace frame SB

Product overview

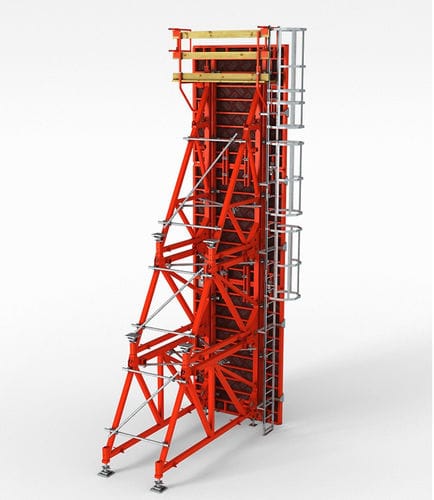

SB Brace Frames provide reliable load transfer for single-sided forming operations up to 3.00–8.75 m. They transfer fresh concrete pressure into the sub-structure and foundations and are compatible with PERI wall formwork systems. SB frames can also be used as horizontal heavy-duty brackets for cantilevers and slab edges.

Applications

• Single-sided concreting of structural walls and elements where fresh concrete pressure must be transferred to foundations
• Use as horizontal heavy-duty brackets for cantilevers, slab edges or pier heads
• Integration with PERI wall formwork systems for modular site layouts

Typical project use / Benefits

• Versatile: usable with all PERI wall formwork systems for varied project requirements
• Quick assembly: connection parts are pre-mounted on the Brace Frame for fast coupling without additional components
• Optimised logistics: component geometries match truck and container dimensions for efficient transport and on-site handling

Technical specifications

• System type: Support frame
• Concreting height: 3.00 m – 8.75 m
• Fresh concrete pressure capacity: up to 60 kN/m²
• Load (tensile and compressive): DW 15 anchor: 180 kN; DW 20 anchor: 300 kN; DW 26 anchor: 500 kN
• Other: PERI V-tie holder and advance coupler allow precise 45° tie rod installation for secure load transfer and maximum stability
