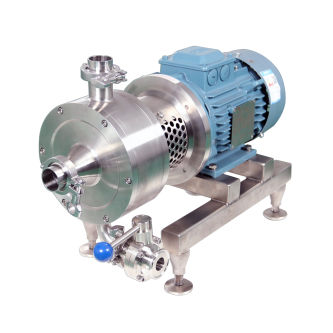

Powder mixer PT-C Series

rotor-statorbatchfor liquids

The PerMix PT-C Series Powder Induction Mixer is a family of equipment which are designed for rapidly mixing powder into liquid in an efficient way. By a selection of different rotating element, PT-C Powder Induction Mixer is able to provide various functions of: 1. High volume powder induction, 2. Dispersing of “difficult-to-wet” powder, 3. Handling the fine dusty powders, 4. Homogenizing, 5. Emulsifying, etc. PerMix offers four (4) types of Powder Induction Mixers, covering the common product range in the market: (1) PT-C/Q (Double Wall Design) (2) PT-C/Y (Special Stator Rotor) (3) PT-C/F (Two Pumps Design) (4) PCH (Shear Pump) With its many distinguished features and options, PerMix PT-C Powder Induction Mixers are widely used in mixing of almost all kinds of powdery products by a variety of industries, e.g. food and beverage, dairy care, pharmaceutical, chemical. The four types of Powder Induction Mixers share similar working principle, but with some difference: (1) PT-C/Q (Double Wall Design Powder Induction Mixers) The PerMix PT-C/Q Powder Induction Mixer is the most common type which is also called Tri-blender. It has two key parts, a casing pipe and a stator rotor system. The casing pipe is built vertically and coaxially into the stator rotor system inlet. This double-wall design prevents the powder going through the casing pipe contacting the liquid and forming lumps before they both arrive at the stator rotor system. As the rotor running at high speed during operation, liquid enters into the chamber and a water ring is created.
