- RS-232 device server
- Pertronic Industries Pty Ltd

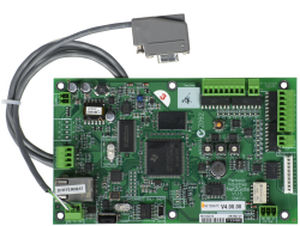

Ethernet device server FireMapRS-232RS-4858 inputs
Add to favorites
Compare this product
Characteristics
- Interface
- RS-232, RS-485, Ethernet, 8 inputs
- Output bus
- DB9
Description
Product overview
The Pertronic FireMap Ethernet Gateway (FMEGATE) enables any fire panel or other equipment to interface with Pertronic FireMap® over an Ethernet network. When connected to the RS-485 port on a Pertronic F220, F100A, or F120A fire panel, the gateway enables FireMap to display detailed fire panel information including the status of all analogue addressable devices controlled and/or monitored by the fire panel. An optional RS-232 connection allows FireMap to read PW4 data from the connected Pertronic fire panel's analogue addressable devices. In addition, the gateway provides limited control functions including Isolate (Disable), Reset, and Acknowledge. The FireMap Gateway can also interface other equipment to Pertronic FireMap®. The gateway provides two independent sets of eight switched (dry-contact) inputs, which may be connected to equipment such as third party fire panels or Pertronic conventional fire panels. Pertronic FireMap® can be configured to display suitable graphics in response to signals on individual switched inputs.
Features
Notes
Note: The FireMap Gateway (FMEGATE) was previously called the Ethernet Gateway Mk2 (NET2GATE). It was renamed to avoid confusion with Net2 Network products. The FireMap Gateway is NOT a Net2 Network product.
Ordering Information
Product Code | Description
FMEGATE | FireMap Ethernet Gateway
Technical specifications
The Pertronic FireMap Ethernet Gateway (FMEGATE) enables any fire panel or other equipment to interface with Pertronic FireMap® over an Ethernet network. When connected to the RS-485 port on a Pertronic F220, F100A, or F120A fire panel, the gateway enables FireMap to display detailed fire panel information including the status of all analogue addressable devices controlled and/or monitored by the fire panel. An optional RS-232 connection allows FireMap to read PW4 data from the connected Pertronic fire panel's analogue addressable devices. In addition, the gateway provides limited control functions including Isolate (Disable), Reset, and Acknowledge. The FireMap Gateway can also interface other equipment to Pertronic FireMap®. The gateway provides two independent sets of eight switched (dry-contact) inputs, which may be connected to equipment such as third party fire panels or Pertronic conventional fire panels. Pertronic FireMap® can be configured to display suitable graphics in response to signals on individual switched inputs.
Features
- TCP/IP Ethernet interface
- RS-485 and RS-232 to Ethernet data conversion
- IP, Netmask, Gateway address and other Ethernet settings configurable via web interface
- Isolate switch for local disable
- Supplied with RS-232 cable and 9-pin D-sub-miniature connector
Notes
Note: The FireMap Gateway (FMEGATE) was previously called the Ethernet Gateway Mk2 (NET2GATE). It was renamed to avoid confusion with Net2 Network products. The FireMap Gateway is NOT a Net2 Network product.
Ordering Information
Product Code | Description
FMEGATE | FireMap Ethernet Gateway
Technical specifications
- Enables Pertronic FireMap® integration over Ethernet
- Connects to RS-485 port of Pertronic F220, F100A and F120A panels for detailed panel and analogue addressable device status
- Optional RS-232 connection to read PW4 data from analogue addressable devices
- Provides limited control functions: Isolate (Disable), Reset, Acknowledge
- Two independent sets of eight switched (dry-contact) inputs for interfacing third-party or Pertronic conventional panels
- TCP/IP Ethernet interface with configurable IP, netmask and gateway via web interface
- RS-485 and RS-232 to Ethernet data conversion
- Includes RS-232 cable with 9-pin D-sub-miniature connector
