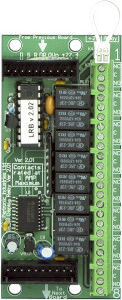

Electromechanical relay module 8RLYM

switchingPCB8-channel

Product Description
Pertronic Industries manufactures a range of RS-485 ancillary peripherals for Pertronic fire alarm panels. These modules add project-specific outputs and displays to systems using Pertronic panels, enabling integration of external indicators and auxiliary control circuits for installers and integrators.

Ancillary Peripheral Range
The ancillary peripheral range includes controller units and output/display modules compatible with the Pertronic Ancillary Peripheral Bus. Units are designed to be connected in series to extend system outputs as required.

8RLYM Overview
The Pertronic 8-Way Relay Mimic provides eight 1 Amp relay contacts. It serves as an output unit and can be daisy-chained with multiple 8-Way Relay Mimics and 8-Way LED displays on a common Ancillary Peripheral Bus, subject to the constraints described in the datasheet. Typical applications include remote indication and switching of auxiliary circuits.

Ordering Information

• 8RLYM — 8 Way Relay Card (Requires LAC485 controller)

Documents

• Datasheet
• Installation Note

Specifications

• Model: 8RLYM
• Product type: 8 Way Relay Card / Mimic
• Relay outputs: Eight 1 Amp relay contacts
• Interface: RS-485 Ancillary Peripheral Bus compatible
• Daisy-chaining: Can be daisy-chained with other 8-Way Relay Mimics and 8-Way LED displays (subject to datasheet constraints)
• Requires: LAC485 controller (as indicated in ordering information)
