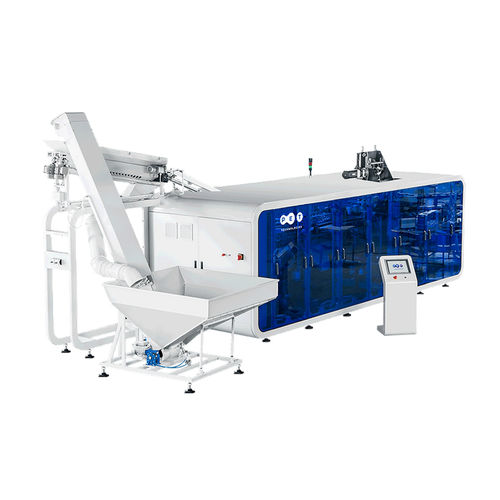

Stretch blow molding machine APF-Max 6L

for PETfor PET bottlesmulti-cavity

Innovative automatic blow molding machine for PET bottles with volume 0.2-3.0l and output 10 000 bph. Quick changeover for wide variety of preforms with neck diameter 18 – 48 mm. CE certificate and conformity to HACCP. Output, bph - up to 10 000 bph Quick change and Flexibility: • - Option to increaser the output by installation of additional blow mold cavities • - Modular blow mold System with separated mold cavities • - Individual block of valves for each mold cavity with air recovery System NIR heabing and low total installed power: • - Near infrared (NIR) heating System consumes less energy, its waves are more intensive • - More efficient System than convectional IR • - 8 heating modules with only 7 lamps • - 108 mandrels in the heater All-electric configuration: • - 6 servo drives: in the mold closing unit, stretching unit, heater rotation, preform transfer to the blowing unit and bottle outfeed System • - Pressure control in the blow mold • - Preblow controlled via PLC • - Automatic température régulation
