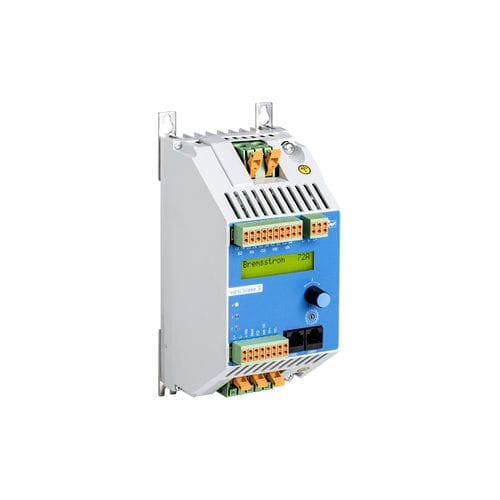

Braking chopper VersiBrake Safe

Features •DC braking with one-way rectification •integrated braking contactor •integrated standstill detection •monitoring of stopping time •suitable for all asynchronous motors •suitable for IE1, IE2 and IE3 motors •self-optimizing braking •CANopen on board •degree of protection IP20 •plugable push-in control terminals •meets trad assoc. requirements for PL = c, •acc. to EN13849-1:2008 Functions •parameterization via keypad or CAN-Bus •potential-free control inputs and outputs •motor temperature monitoring (PTC, KTY, PT1000) •device protection •tool speed monitoring (external speed sensor required) •device fault relay (safety relevant) •summary fault relay •star-delta starting control Options •wide-voltage-range 480 - 690VAC upon request Preferred application areas •centrifuges •vibration sifters •wood working machines •grinding machines •mixer •others
