Motorized bending machine RBA series
tubefully-automaticprecision

motorized bending machine
motorized bending machine
Add to favorites
Compare this product


Characteristics

Operation
motorized
Product handled
tube
Control
fully-automatic
Other characteristics
precision

Description

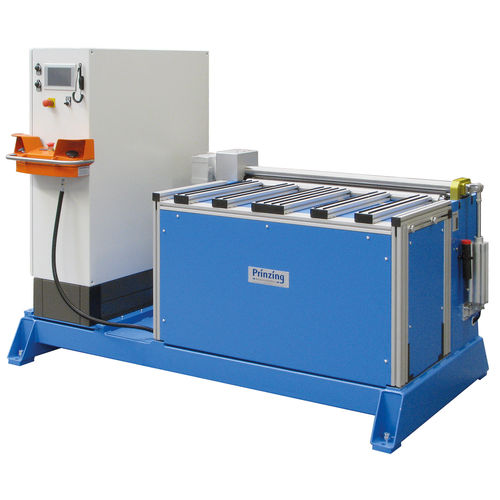

The round bending machine (RBA) is our high-end product in the field of tube manufacturing. Accuracy and speed, these features the RBA combines and therefore fits in any modern tube manufacturing. Whether manual loading and unloading or complete integration in a fully automatic tube production line, both scenarios can be covered by the RBA. By the modern SPS not only programs can be stored but also communication with other systems can be built. The RBA is in a four-roll design. The rolls are positioned by a infinitely variable motor. The motors are doing the feeding, bending angle and angular deflection plate. Bearing cap and lateral stop for the pre-bending are pneumatically actuated. Control panel with SPS-control and touch screen for setup- and automatic sequence. Program memory for 200 programs with up to 30 bending steps. Password protection for data, parameters and service. Bending rolls are are out of high strength material and can be hardened and ground on customers demand. Also the cut of the finished tubes can be automated by pneumatic setting. Features in the summary: • Four roll design with high-strength rolls • Roll positioning motor driven, infinitely variable • Motor driven adjustment of sheet thickness • Sheet metal stop and bearing cap pneumatically controlled • SPS-control of the machine with touch-screen control • Program memory for 200 programs (30 steps/program), power failure, with password protection • Individual program settings for various tube profiles • Compact and service-friendly design of the machine
