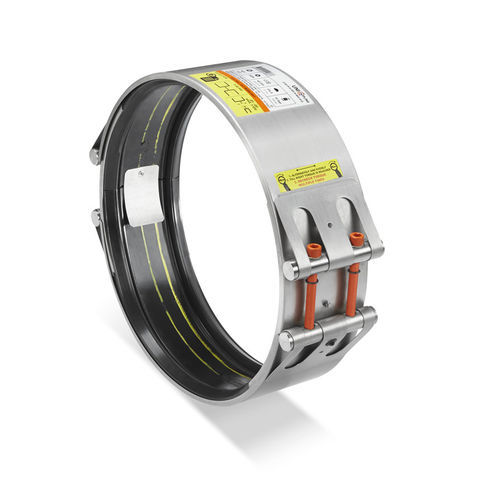

Plastic pipe clamp 138-2R10A4N172-198

PE

Housing material: - Closure, Housing Material A4 (1.4571 / 1.4404) Damage length: - Damage length up to max. 400 mm all damages Diameter range: - > 172 mm Pipe materials: - All pipe materials Flowing medium: - Water / flammable gases / compressed air / oil / fuel and other hydrocarbons -20 °C bis +80 °C NBR Pressure levels: - PN 16 High tension-proof / Not tension-proof: - Not tension-proof PEWOREP PN 16 NOT TENSION-PROOF with NBR Sealing -20°C up to +80°C in A4 (316/1.4571) Quality Ø min./max. 172-198 mm Width 138 mm 2 Closure Important information: Follow the installation and disassembly instructions. PN = Working pressure with consideration of the application loads for industrial applications. In case of shipbuilding applications, PN is one PN class below, e.g. PN 25 Industry = PN 16 Shipbuilding. PN classes = PN 2.5; PN 6; PN 10; PN 16; PN 25 Test pressure = PN x 1.5 The pressure data is given under the precondition that radially rigid steel pipes with a minimum wall thickness are used under static load. Use the Technical Manual for other pipe materials. Band inserts are necessary for special applications. Support sleeves must be used for thermoplastic plastic pipes (PE/PP/PB/PVC/ABS...).
