Electronic single chainstitch button sewer

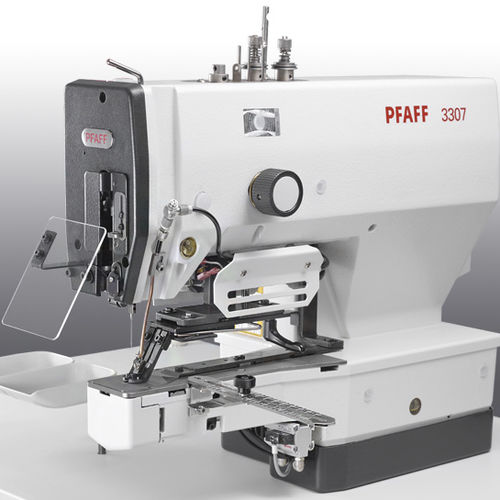

Increase your effectiveness and efficiency. The chainstitch button sewer PFAFF 3307 is reliable, the buttons are firmly attached. The skip stitch sensor and double end stitch knotting device see to that. The single thread technique results in a neat seam without “birds nest”. This makes it possible to sew soft, modern materials.
The production is effective due to high speed, low conversion and processing times: No bobbin change, no need to provide several bobbins with different coloured threads. The high needle bar stroke and the pendulum-type needle bar provide you with a high degree of flexibility. This technology increases the application scope of the PFAFF 3307. All the most common types of button can be sewn, from the standard type to the self-shank button. The PFAFF 3307 guarantees firmly secured buttons, high output and flexibility.
High sewing reliability and secure position of the workpiece
Large cross stitch up to 8 mm
Free seam programming with easily understandable user guidance
Memory for 99 seam programs per button style
Single-thread chainstitch (seam type 101)
A neat seam, no „birds nest“
No time is lost changing the thread colour, no bobbin change required
Integrated sewing drive
Smooth, low-vibration operation
330 x 200 mm space below the button clamp guarantees easy attachment of the buttons even on bulky articles
17 mm clamp lift makes it possible to sew very thick workpieces
46 mm needle bar stroke makes it possible to sew on very large self-shank buttons with a diameter of up to 30 mm, or buttons with a stem length of up to 12 mm
