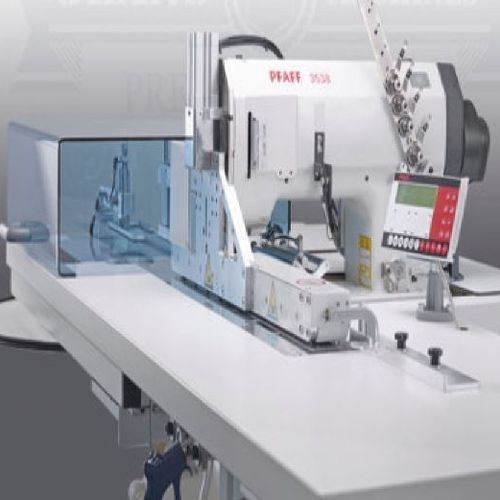

Chain stitch sewing machine PFAFF 3538-30/02 (PLUS)

single-needlefor jeansfixed

"The 3538 is one of the most productive, automated system in the industry - the demands on the operator are reduced to a minimum" - High productivity and constant sewing quality for pockets with straight or slanted openings - Very simple operation (only feed the pocket blanks into the machine) - A newly designed band feed, driven by a stepper motor and optimized transport belts allows the universal processing of assorted materials and material thicknesses - Inserting station (+ photocell control) with automatic start) - Smooth and absolute straight pocket hem via optimized hemming device with supporting transport - High performance: approx. 16,500 pockets in 8 hours - Wide range of application, e. g. surf shorts, all denim fabrics (even stretch), standard pockets, watch pockets, pockets on work pants - Stand for stand-up operation - Automatic chain cutter and suction mechanism Options - Customized sewing kits + attachments - Thread monitor Applications Surf shorts, all denim fabrics (even stretch), standard pockets, watch pockets, pockets on work pants Needle system: SY62X57 Needle size: 100 - 120 Nm Max. sewing speeds: 4.000 s.p.m Max. stitch length: 4,5 mm Hem width: Standard 12 mm (others on request) Pocket size: min. 90 x 90 mm, max. 280 x 280 mm Needle gauge (standard): 6,4 mm Needle gauge (optional): 3,2 mm, 4,8 mm, 7,2 mm, 8,0 mm, 9,6 mm, 12,7 mm Multi-needle versions: 3-needle 3,2 mm x 3,2 mm Stitch type: 401 (double-chainstitch) Performance in 8h: 16.500 Connection voltage: single-phase a.c. 230 V, 50/60 Hz
