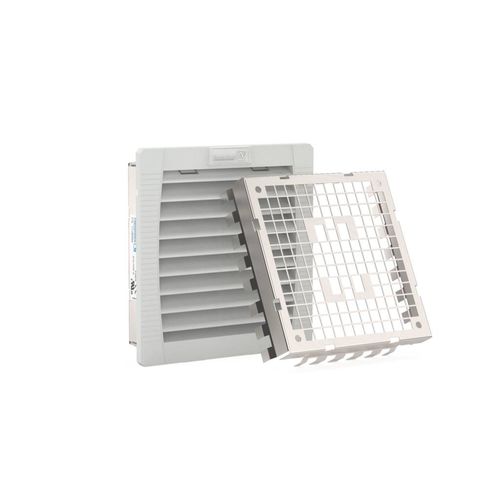

Electrical cabinet fan PFA 20.000 EMC
axialexhaustfilter

electrical cabinet fan
electrical cabinet fan
electrical cabinet fan
electrical cabinet fan
electrical cabinet fan
electrical cabinet fan
Add to favorites
Compare this product


Characteristics

Installation
for electrical cabinets
Configuration
axial
Function
exhaust
Other characteristics
filter, IP55, IP54
Air flow

Max.: 70 m³/h
(2,472.027 ft³/h)

Min.: 56 m³/h
(1,977.621 ft³/h)

Noise level

44 dB

Description

same design as the PF series filterfans snap fastener developed and patented by Pfannenberg door mounting without screws in accordance with VDE 0113 (EN 60204) simple filter mat exchange during operation with integrated foam seal to enclosure degrees of protection IP 54 and IP 55, NEMA type 12 UR and UL approval UV resistance (IP 55 version, RAL 7035) cut-out compatible to installation size 2 of the 3rd and 4th Generation The PFA 20.000 EMC is an exhaust filter that is manufactured by Pfannenberg. The unit has similar structures as the PF series filterfans. It is equipped with a snap fastener, manufactured and patended by Pfannberg. It can be mounted on doors even without screws. This function is in compliance with VDE 0113 or EN 60204. This apparatus has simple filter mat exchange capabilities during operation. It is supplied with incorporated foam seal to enclosure.

Other PFANNENBERG products

Filterfans IP54/55
