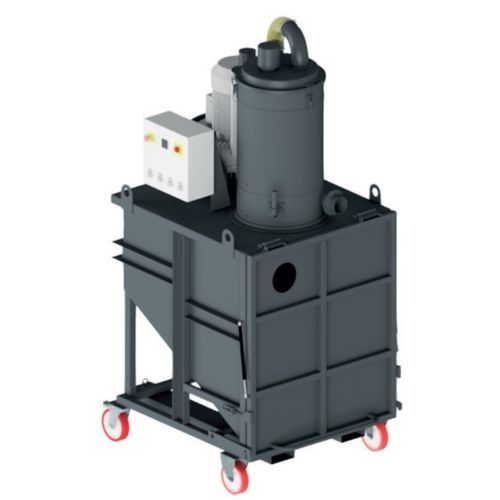

Vacuum receiver C1000T75

Summary
Three-phase suction hopper with 8.6 kW power and 1000-litre capacity

Overview
The C1000T75 suction hopper from Pharaon combines high suction performance and large storage capacity for heavy-duty industrial applications. Equipped with a three-phase 400 V motor designed for continuous, low-maintenance operation, it delivers maximum productivity in demanding environments.
The 1000-litre tank is suitable for collecting large volumes of dust and waste (e.g., sawmills, brickworks, cement plants, waste treatment sites). Unloading is performed via a front opening operated by a pneumatic cylinder, ensuring rapid and efficient emptying of contents. An integrated inspection window allows visual monitoring of the fill level.
Construction in epoxy-painted steel provides durability and resistance to industrial conditions. The hopper is mounted on large robust wheels and includes forklift pockets to facilitate on-site movement. The filtration system features a category M 1µ antistatic filter for optimal fine dust filtration (wood chips, aluminium, etc.), contributing to a healthier and safer working environment.

Benefits

• High vacuum suction
• Industrial, robust design
• Large working capacity
• Suitable for high-volume suction tasks

Technical specifications

• Model: C1000T75
• Brand: Pharaon
• Power: 8.6 kW (8600 W)
• Voltage: 400 Volts (three-phase motor)
• Tank capacity: 1000 litres
• Max vacuum: 3200 mmH₂O
• Max airflow: 840 m3/h
• Noise level: 76 dB
• Filter area: 49,000 cm²
• Filter: category M 1µ antistatic
• Unloading: front opening operated by pneumatic cylinder
• Materials: epoxy-painted steel
• Mobility: large robust wheels and forklift pockets
