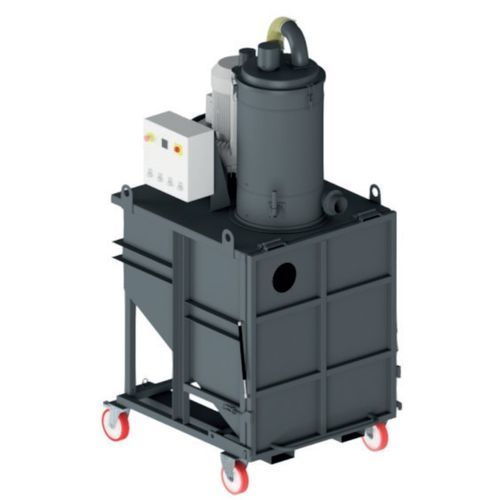

Filter dust collector C1000T110

for wood dustfine dustvacuum

Description
The C1000T110 suction hopper from Pharaon is a high-capacity hopper designed for continuous industrial vacuuming. It combines substantial suction capacity with large storage volume to handle significant quantities of dust and waste in industrial environments.

Main features
The machine is fitted with a 400 V three-phase motor, engineered for continuous operation and high productivity. Its 1000-litre tank enables collection of large amounts of dust and debris. Discharge is performed via a front opening actuated by a pneumatic cylinder for fast and secure evacuation. An inspection viewport allows real-time monitoring of fill level. The frame is made of epoxy-painted steel for enhanced durability; the hopper includes heavy-duty wheels and forklift pockets for on-site handling. Filtration is provided by an antistatic M-class 1µ filter, suitable for fine dust and wood or aluminium chips.

Key advantages

• Industrial-grade suction unit
• Robust industrial design
• Large working capacity (1000 L tank)
• Suitable for high-volume vacuuming

Typical applications

• Sawmills
• Brickworks
• Cement plants
• Waste processing centres
• Collection of wood, rubble and industrial dust

Technical specifications

• Tank capacity: 1000 L
• Max vacuum (mmH2O): 3400
• Max flow rate (m3/h): 1300
• Sound level (dB): 76
• Filter area (cm²): 49000
• Voltage (Volts): 400 (three-phase motor)
• Power indicated in descriptive text: 14.5 kW
• Power listed in technical sheet: 8600 W
• Filter: antistatic M-class 1µ
• Construction: epoxy-painted steel
• Discharge system: front opening actuated by pneumatic cylinder
• Handling features: heavy-duty wheels and forklift pockets
