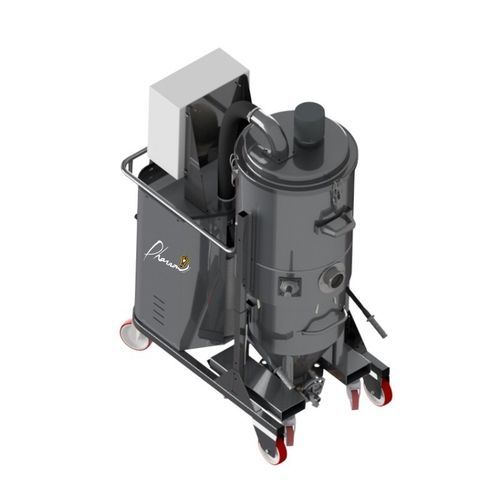

Industrial vacuum cleaner DG BLAST INVERTER

dryhazardous dustfine dust

Presentation
Compact, high-performance industrial vacuum designed for blasting and shot-blasting environments.

Use and applications

• Sandblasting, shot blasting and industrial stripping
• Post-blasting cleaning and shot recovery
• Extraction of metallic dust and abrasive residues
• Use on mobile sites, near blasting cabins or as a supplement to automated equipment
• Confined areas requiring high power-to-footprint ratio

Key features

• Compact, robust construction
• Continuous 24/7 operation capability
• Mobile design suitable for demanding industrial environments
• Epoxy-painted steel structure resistant to impacts

Detailed technical description
The DG BLAST INVERTER is a three-phase vacuum unit developed for environments with heavy dry dust generated by blasting, shot blasting and stripping operations. The suction unit is based on an 8.6 kW side-channel blower, designed to be quiet and maintenance-free. It can deliver a maximum vacuum of 3 200 mmH2O, maintained at 2 700 mmH2O during continuous operation, with an airflow up to 840 m3/h. The motor is IP65 rated and fitted with an integrated safety valve for optimal cooling and overload protection.

Primary filtration is provided by an antistatic polyester pocket filter (M class) treated with PTFE, offering a total filter surface of 30,000 cm² to retain fine, abrasive or conductive dust from shot blasting and stripping. The system includes a manual shaker handle to preserve suction performance and extend filter life. Optionally, a HEPA H14 absolute filter (52,000 cm²) can be fitted for hazardous dust contexts or strict regulatory requirements, providing 99.995% filtration efficiency.

The collection bin has a 50 L capacity, is removable for safe handling and includes integrated forklift pockets for quick, contact-free emptying. The assembly is mounted on an epoxy-painted steel chassis, ensuring structural strength and optimal mobility on site.

The DG BLAST INVERTER is intended for industrial users seeking a durable, high-performance solution to manage aggressive dust while enabling continuous and safe operation.
