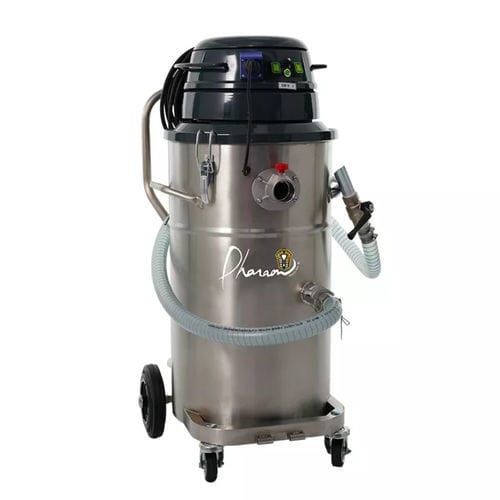

Industrial vacuum cleaner MTL802WXP

wetliquidselectric

Overview
The MTL802WXP is an industrial vacuum designed for simultaneous suction and discharge of liquids. Its stainless steel recovery tank provides corrosion resistance for water-related applications. Compact and robust, it is easy to transport and suited to varied working environments. The unit is powered by two independent single-phase by-pass motors delivering a total power of 2.3 kW. Suction power is adjustable to operator needs. A 5 000 cm² filter bag protects the motors from liquids and foam formation. A safety float stops the motors immediately in case of tank overfill.

Operation and equipment
The MTL802WXP features an 80 L recovery tank and an integrated submersible pump allowing simultaneous discharge during suction (pump 135 L/min, discharge head 6.89 m). The assembly is designed for optimal operation and improved efficiency during interventions. The unit is mounted on two large wheels and multidirectional castors and includes an ergonomic handle to facilitate movement on uneven floors. Construction: epoxy-painted steel structure and stainless steel tank for corrosion resistance.

Key points

• 80 L stainless recovery tank
• 2 independent single-phase by-pass motors (total power 2.3 kW)
• Integrated submersible pump — flow 135 L/min — discharge head 6.89 m
• Safety float to prevent overfilling
• 5 000 cm² filter bag protecting the motors
• Epoxy-painted steel construction and stainless tank
• Easy handling: 2 large wheels + multidirectional castors + ergonomic handle

Technical specifications

• Model: MTL802WXP
• Power: 2.3 kW
• Max vacuum (mmH₂O): 2500
• Max flow (m3/h): 360
• Tank capacity: 80 L
• Noise level: 76 dB
• Voltage: 230 V
• Submersible pump: 135 L/min (discharge head 6.89 m)
• Filter bag surface: 5 000 cm²
• Materials: stainless tank, epoxy-painted steel structure
• Dimensions (cm): 56 x 60 x 107 (H)
