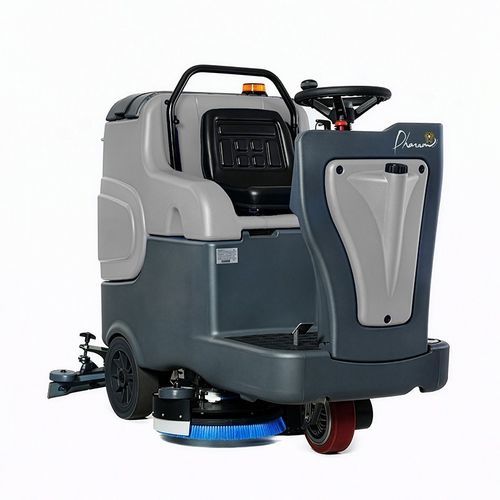

Ride-on scrubber-dryer EF100

electricbattery-poweredindustrial

Presentation
The EF100 is a battery-powered ride-on scrubber dryer designed for cleaning and washing various types of floors. Its industrial-grade design is intended for applications requiring treatment of large areas (supermarkets, shopping centers, halls, sports centers, storage areas, car parks).

Performance and operation
Powered by batteries, the EF100 offers an autonomy of up to 4 h 45. Operator station with onboard driving position and centralized controls within reach. Maximum speed 6 km/h and ability to climb slopes up to 10%. Built-in potentiometer to adjust cleaning power according to the application and floor type.

Scrubbing and suction
Scrubbing is provided by two rotary brushes with a diameter of 480 mm (total power 2 × 400 W) and a cleaning width of 1,000 mm. The integrated suction system, combined with the squeegee, facilitates recovery of dirty water and contributes to rapid floor drying.

Tanks and maintenance
The scrubber has two large-capacity tanks (clean water and recovery water), each with a capacity of up to 160 litres. An integrated drain hose simplifies disposal of dirty water, reducing interruptions and optimizing productivity.

Comfort and safety
Integrated beacon to improve visibility of the machine and the operator in poorly lit areas. Limited noise level (63 dB) allowing use in frequented spaces without significantly disturbing surrounding activity.

Key benefits

• Large tank capacity
• Built-in potentiometer for power adjustment
• Suitable for busy areas (limited noise level)
• Ideal for large surfaces

Technical data / specifications

• Model: EF100
• Power supply: 48 V (4 × 12 V 157 Ah)
• Operation: Battery
• Autonomy: 4h45
• Productivity: 5,750 m²/h
• Cleaning width: 1,000 mm
• Squeegee width: 1,256 mm
• Clean water tank capacity: 160 L
• Recovery water tank capacity: 160 L
• Brush diameter: 2 × 480 mm
• Brush power: 2 × 400 W (total power indicated)
• Brush pressure: 43 kg
• Drive: front wheel
• Maximum travel speed: 6 km/h
• Noise level: 63 dB
• Weight: 402 kg
• Dimensions (L × W × H): 1600 × 1260 × 1360 mm
• Slope capacity: can climb slopes up to 10 %
• Suction system: integrated with squeegee for recovery of dirty water
