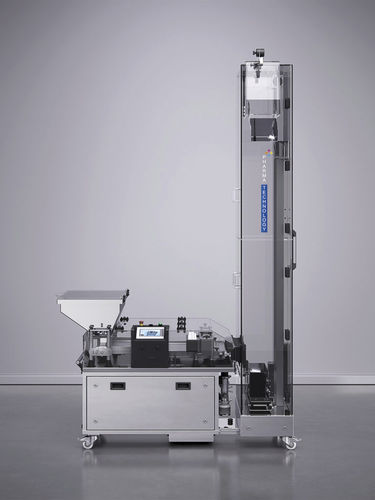

Sorting machine for the pharmaceutical industry iSort

automaticprocessfor cleaners

Product overview
The iSort, combined with the iLift elevator, sorts broken, twin and capped tablets before they enter the feeding system to improve blister packaging line reliability and reduce downtime.

Key benefits

• Sorts broken, twin and capped tablets
• Effective on oblong and irregular shapes
• Automatic, high-precision sorting adjustment
• Patented automatic anti-jamming system to increase line uptime
• Inspection speed up to 500,000 tablets per hour (dependent on product)
• Two product discharge heights: 1855 mm and 2355 mm
• Fast changeover via pre-set product recipes
• Tool-free parts for easy cleaning and maintenance
• Central HMI with OPC UA and CFR 21 Part 11 compliance
• Available in Dust Tight and "C" Containment configurations

Optimized sorting for reliable packaging
Installed upstream of the blister machine, the iSort automatically removes undersized tablets and fragments before they reach the feeder. This prevents jams and reduces downtime, ensuring consistent operation of the packaging line.

Fully enclosed, flexible integration
A dedicated lifting system feeds tablets to the blister hopper at the required height within a dust-tight enclosed design that preserves a clean production environment. The sorter can be coupled with a tablet deduster for a complete, connected handling solution and can be integrated directly into compact packaging lines.

Fast changeover and simple operation
Product settings are stored in the HMI to ensure repeatability and rapid automated changeovers. Only one format part is required to adapt to various tablet sizes and shapes; the tool-free design simplifies assembly, cleaning and maintenance. With a deduster and Flex Connect the system can be supplied in containment levels up to OEB4.

Technical specifications

• Inlet chute: 50–80 L - TC DIN DN100
• Minimum product size: Ø 4 mm
• Maximum product size: Ø 25 mm
• Product type: Tablet
• Function: Sorting
• Conveying adjustment: Vibration intensity
• Self-emptying: Yes
• Noise level: <70 dB(A)
• Power supply: 110 V to 230 V ±10%
• Frequency: 50 Hz / 60 Hz
• Non-metallic contact parts: POM C, PU, Nylon, Silicone, PMMA
• Metal contact parts: Stainless Steel 316L, Aluminum with surface treatment, Stainless Steel 430
• Contact parts finishing: Ra ≤ 0.8 µm
• Operating temperature: 15–25 °C
• Maximum relative humidity: 60%
• Frame parts: Stainless Steel 304, AL 6082
• Frame finishing: Brushed 320
• Frame mounted on wheels: Yes
• IQ-OQ protocol: Available
• Material certificates: Available
• Packaging: Wooden box
• Net weight: 500 kg
• Footprint: 760 mm x 1165 mm
• Inlet height: 1125 mm
• Tablet Ø8 x 2 mm [tabs/h]: 700,000
• Tablet Ø13 x 4 mm [tabs/h]: 500,000
• Oblong 19 x 8 x 9 mm [tabs/h]: 350,000
• Containment level: Dust Tight, Contained
• Application area: Packaging
• Product range: iRange
• Discharge heights: 1855 mm and 2355 mm
• Central HMI with OPC UA, CFR 21 Part 11 compliant
